Electrical (Headlamps adjust): Adjustments

HEADLAMPS ADJUST

Service repair no - 86.40.17

Check

1. Line up suitable beam setting equipment to headlamp.
2. 97.5 MY on: If necessary, set headlamp leveling switch to zero, turn starter switch to position ’II’ and allow headlamps to reset. Turn ignition off.
3. Switch on headlamps. Headlamp setting = 1.4% below horizontal and parallel.

Adjust

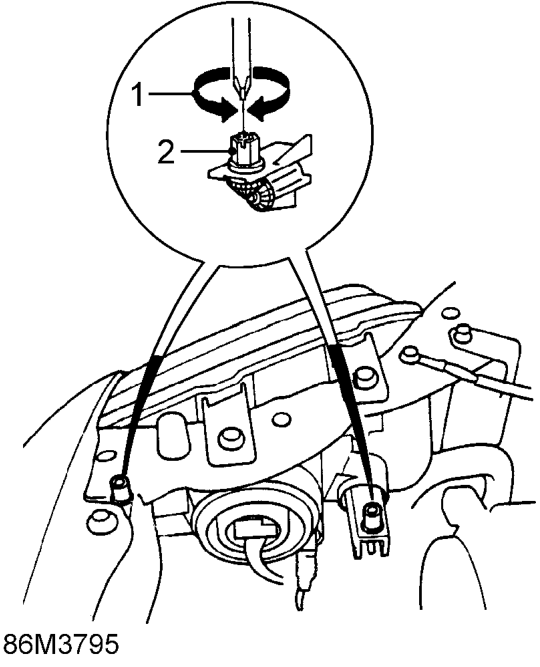

1. Adjust one headlamp using Pozi-drive screwdriver size 2 (medium).
2. Turn adjusting cog for vertical alignment.
3. Turn adjusting cog for horizontal alignment.
4. Line up beamsetter to 2nd headlamp.
5. Adjust 2nd headlamp.
6. Switch off headlamps.
7. Remove beamsetter.

DRIVE BELT - ’T’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 86.10.03

Remove

1. Disconnect battery earth lead.
2. Remove underbelly panel. See BODY, Exterior fittings.

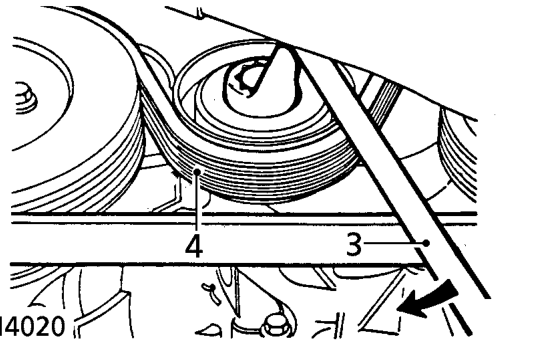

3. Using a 15 mm ring spanner on tensioner pulley bolt hold tensioner pulley fully clockwise.
4. Release drive belt from tensioner pulley, release tensioner pulley tension and remove spanner.
5. Remove drive belt from remaining pulleys.

Refit

1. Clean drive belt pulley grooves, ensuring pulley grooves are not damaged.
2. Fit NEW drive belt around pulleys, except tensioner pulley, ensuring all grooves are correctly engaged.
3. Hold tensioner pulley fully clockwise, fit drive belt centrally around tensioner pulley; release tensioner pulley tension and remove spanner.
4. Fit underbelly panel. See BODY, Exterior fittings.
5. Connect battery earth lead.
