Catalytic converter - ’d’ series

Do not carry out further dismantling if component is removed for access only.

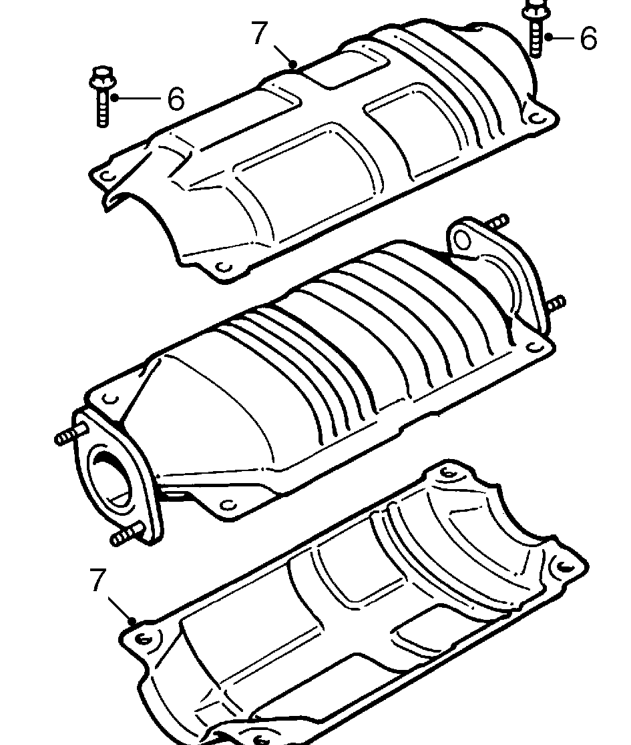

6. Remove 4 bolts securing heat shield to catalytic converter.
7. Remove heat shield.
8. Position heat shield to new catalytic converter, fit bolts and tighten to 8 Nm.

Refit

1. Clean mating faces of catalytic converter, front pipe and intermediate pipe.
2. Fit new gasket to each catalytic converter flange.
3. Fit catalytic converter to front pipe and connect to intermediate pipe. Fit nuts and tighten to 34 Nm.
4. Remove stand(s) and lower vehicle.

CATALYTIC CONVERTER - ’D’ SERIES

Service repair no - 17.50.01

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

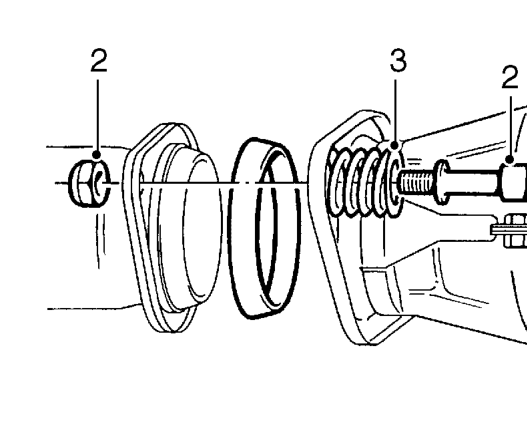

2. Remove 2 nuts and bolts securing catalytic converter to exhaust front pipe. discard nuts.
3. Collect clamp springs and remove gasket.
