Evaporative emission canister - ’d’ series

EVAPORATIVE EMISSION CANISTER - ’D’ SERIES

Service repair no - 17.15.13

Remove

1. Disconnect battery earth lead.

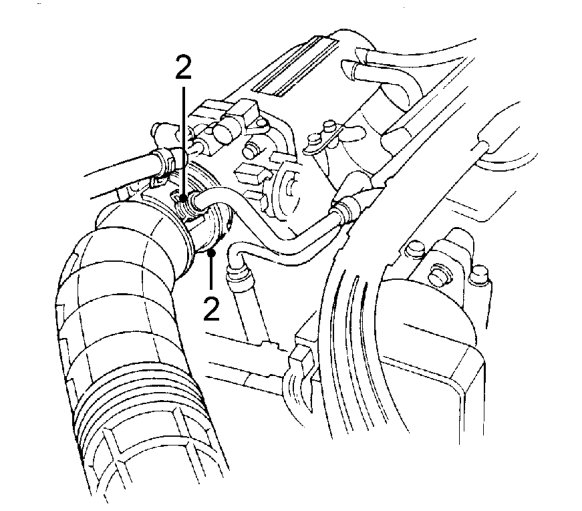

Up to 97.5 MY illustrated.

2. Loosen clip securing air intake hose to inlet manifold and release clip securing intake hose to breather pipe.
3. Disconnect hose from manifold and breather pipe. Remove hose from air cleaner. 97.5 MY on: Disconnect multiplug from intake air temperature (IAT) sensor.

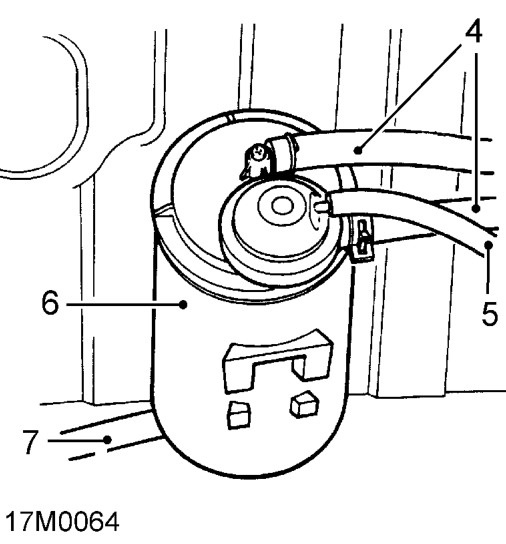

4. Release 2 clips and disconnect 2 canister vent hoses.
5. Disconnect hose from purge control diaphragm.
6. Release canister from body clip.
7. Disconnect drain hose connector and remove canister.

Refit

1. Position canister, connect drain hose connector and secure canister to body clip.
2. Connect vent hoses and secure with clips.
3. Connect hose to purge control diaphragm valve.
4. Fit air cleaner hose to air cleaner and connect to inlet manifold and breather pipe. Secure clips. 97.5 MY on: Connect multiplug to intake air temperature (IAT) sensor.
5. Connect battery earth lead.
