Emission controlCatalytic converter - ’k’ series

CATALYTIC CONVERTER - ’K’ SERIES

Service repair no - 17.50.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

Catalytic converter - ’k’ series – Raise front of vehicle.

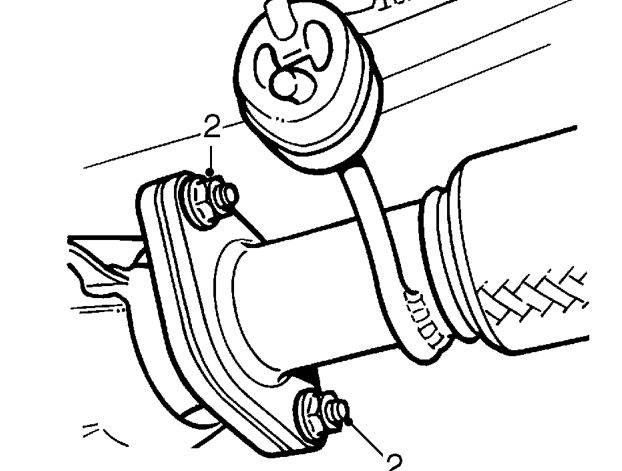

  1. Remove 2 nuts securing catalytic converter to exhaust front pipe.
Catalytic converter - ’k’ series – Remove 2 nuts securing catalytic converter to exhaust front pipe.

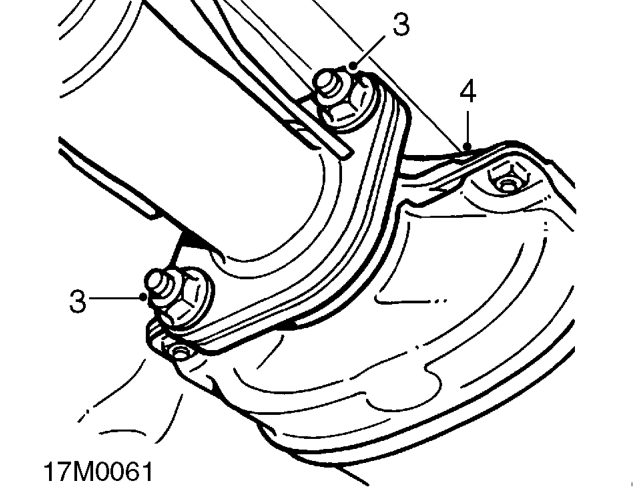

  1. Remove 2 nuts securing catalytic converter to intermediate pipe.
  2. Disconnect catalytic converter from intermediate pipe. Remove catalytic from front pipe.
  3. Remove and discard gaskets.

CAUTION: Catalytic converters are manufactured from ceramic material which is very fragile, avoid heavy impacts on converter casing.
