Gearbox oil - ’PG1’

GEARBOX OIL - ’PG1’

Service repair no - 37.24.01

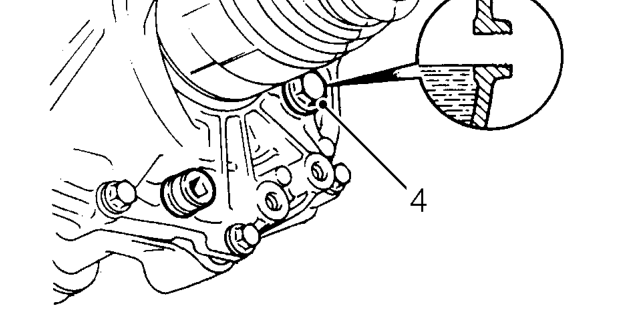

Oil level check and top-up

1. Ensure vehicle vehicle is standing on a level surface.
2. ’L’ Series models: Remove underbelly panel. See BODY, Exterior fittings.
3. Clean area around filler/level plug.

4. Remove filler/level plug.
5. Check that oil is level with bottom of filler/level plug hole.

CAUTION: Oil lodged behind filler/level plug will trickle out when plug is removed and can give the impression that level is correct.

6. Top-up, if required, until oil just runs from filler/level hole. Allow sufficient time for oil to flow until it reaches a common level in the gearbox. Use the correct specification oil. See INFORMATION, Capacities, fluids and lubricants.
7. Fit filler/level plug and tighten to 40 Nm.
8. ’L’ Series models: Fit underbelly panel. See BODY, Exterior fittings.

GEARBOX OIL - AUTOMATIC GEARBOX

Service repair no - 44.24.02

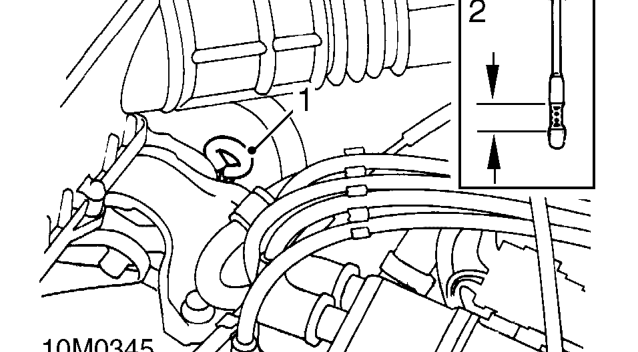

Fluid level check and top-up

Up to 97.5 MY illustrated

NOTE: Always check fluid level with vehicle standing on level ground and transmission at normal operating temperature.

1. Within 1 minute of switching off engine, remove gearbox dipstick and wipe blade.
2. Re-insert dipstick into gearbox, withdraw and check fluid level which must be maintained between FULL and LOW marks.
3. Top-up, if required, through the dipstick hole with DEXRON-II D type automatic transmission fluid to bring the level to the FULL mark.
4. Refit dipstick.
