Rover 400 Workshop Manual (1995-2000)18 · Manual gearbox - R65
18 · Transmission

Input shaft oil seal

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Input shaft oil seal
Manual gearbox - R65Input shaft oil seal

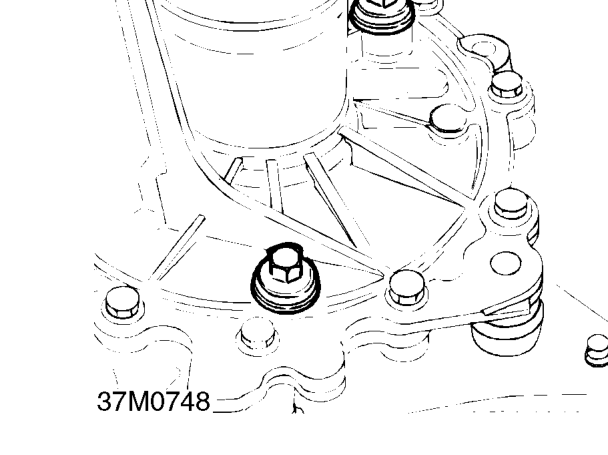

Diagram
  1. Fill gearbox with correct grade of oil, until oil is level with filler/level hole in gearbox. See INFORMATION, Capacities, fluids and lubricants.
  2. Fit filler/level plug and tighten to 25 Nm.

INPUT SHAFT OIL SEAL

Service repair no - 37.23.06

Remove

  1. Remove gearbox assembly. See MANUAL GEARBOX, Repairs.

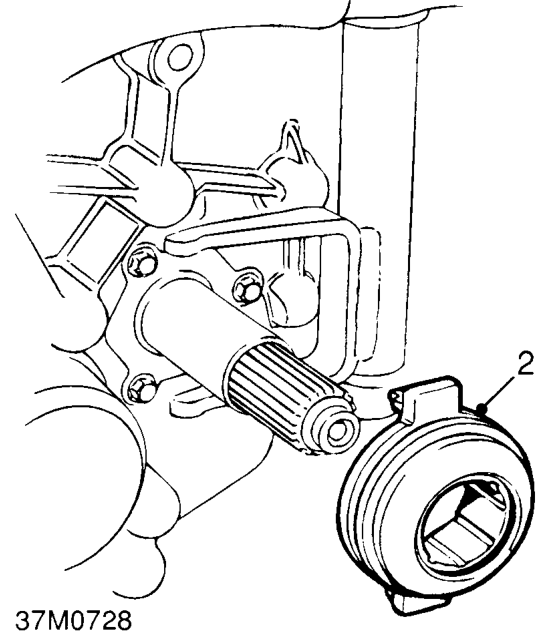

Input shaft oil seal – Remove gearbox assembly. See MANUAL GEARBOX, Repairs.
  1. Remove clutch release bearing from guide sleeve and release fork.

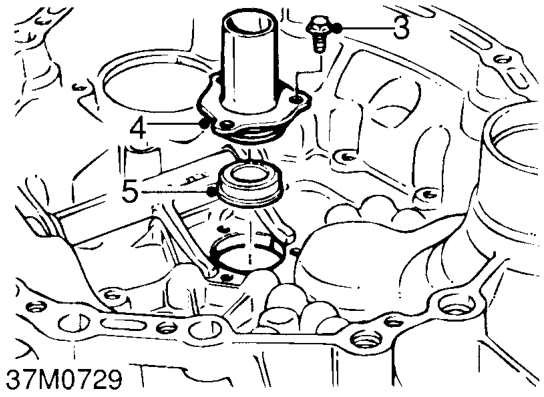

Input shaft oil seal – Remove clutch release bearing from guide sleeve and release fork.
  1. Remove and discard 3 bolts securing release bearing guide sleeve to gearbox.
  2. Remove release bearing guide sleeve from gearbox.
  3. Remove and discard input shaft oil seal from guide sleeve.
