REVERSE LAMP SWITCH

Service repair no - 37.27.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

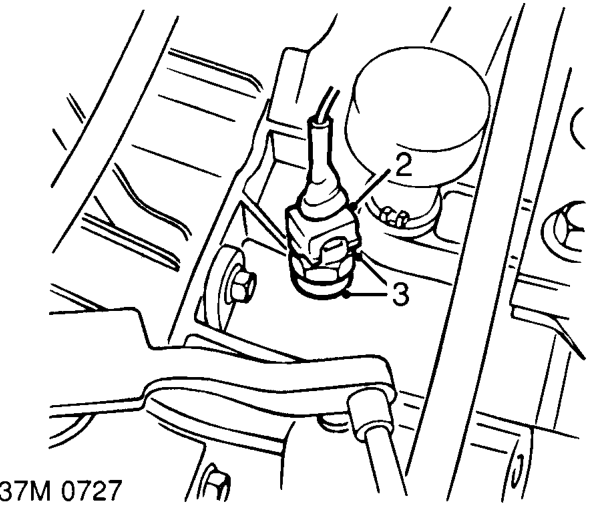

Reverse lamp switch – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Disconnect multiplug from reverse lamp switch.
  2. Remove reverse lamp switch and discard sealing washer.

Refit

  1. Clean mating faces of reverse lamp switch and gearbox.
  2. Fit new sealing washer to reverse lamp switch.
  3. Fit reverse lamp switch and tighten to 25 Nm.
  4. Connect multiplug to reverse lamp switch.
  5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

LH DIFFERENTIAL OIL SEAL

Service repair no - 54.10.18

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove LH front road wheel.
  2. Position container to catch fluid loss from gearbox.

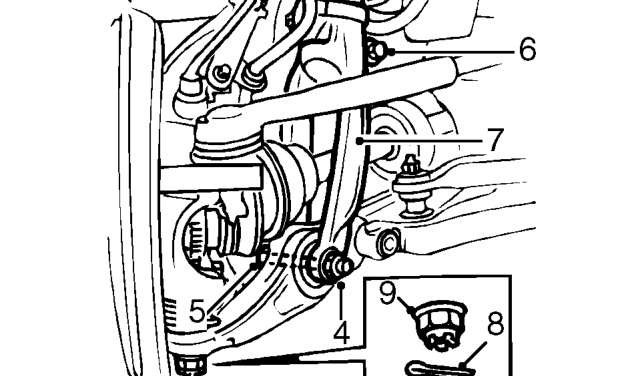

Lh differential oil seal – Position container to catch fluid loss from gearbox.
  1. Remove and discard nut securing damper fork to lower suspension arm.
  2. Remove through bolt from lower arm.
  3. Remove pinch bolt securing damper fork to damper.
  4. Remove damper fork.
  5. Remove and discard split pin from castle nut securing front hub to lower suspension arm.
  6. Remove castle nut securing front hub to lower suspension arm.
