MANUAL GEARBOX

Service repair no - 37.20.02.99

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove underbelly panel. See BODY, Exterior fittings.
  2. Remove starter motor. See ELECTRICAL, Repairs.
Manual gearbox – Remove starter motor. See ELECTRICAL, Repairs.

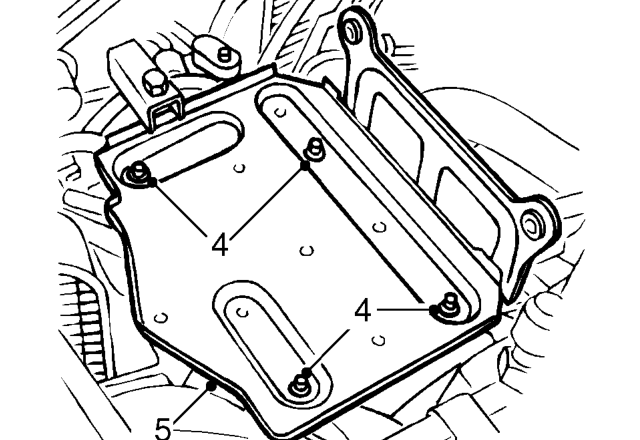

  1. Remove 4 bolts securing battery tray to mounting bracket.
  2. Remove battery tray.
Manual gearbox – Remove battery tray.

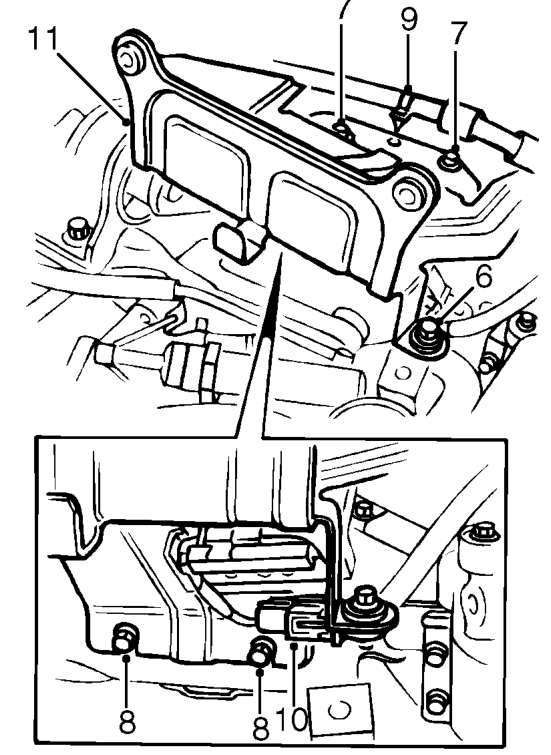

  1. Remove bolt securing air intake hose to battery tray mounting bracket.
  2. Remove 2 bolts securing battery tray mounting bracket to body.
  3. Loosen 2 bolts securing battery tray mounting bracket to body.
  4. Release clip securing harness to body and position harness aside.
  5. If fitted: Disconnect multiplug from dim dip resistor.
  6. Remove battery tray mounting bracket.
