Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)18 · Manual gearbox - R65
18 · Transmission

Manual gearbox (page 3 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Manual gearbox - R65Manual gearbox · page 3 of 5
  1. Release LH drive shaft from gearbox. See MANUAL GEARBOX, Repairs. LH differential oil seal.
  2. Release RH drive shaft from gearbox. See MANUAL GEARBOX, Repairs. RH differential oil seal.
Release RH drive shaft from gearbox. See MANUAL GEARBOX, Repairs. RH differential oil seal

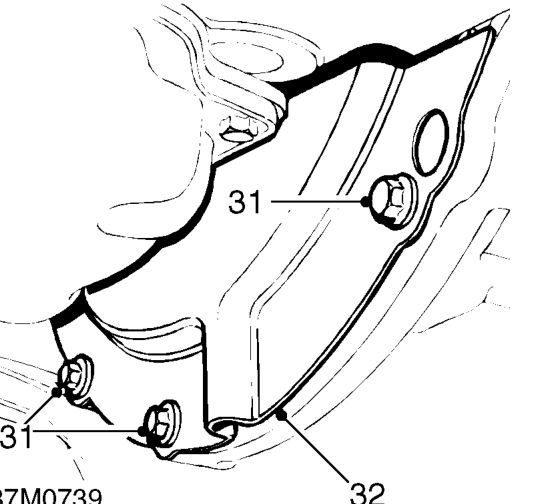

  1. Remove 3 bolts securing flywheel lower cover plate to flywheel housing.
  2. Remove flywheel lower cover plate.
Remove flywheel lower cover plate.

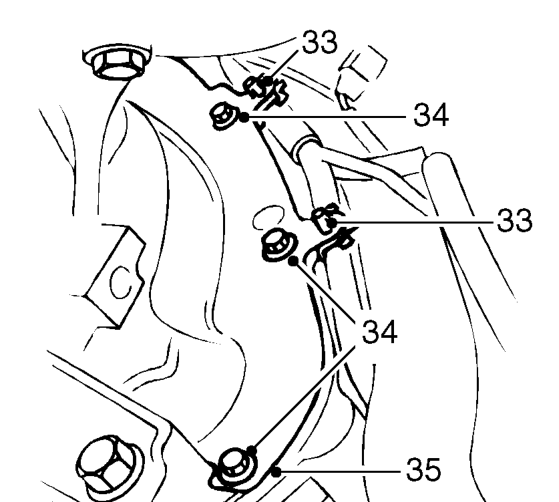

  1. Release 2 clips securing starter motor cable to flywheel front cover plate.
  2. Remove 3 bolts securing flywheel front cover plate to flywheel housing.
  3. Remove flywheel front cover plate.
Remove flywheel front cover plate.

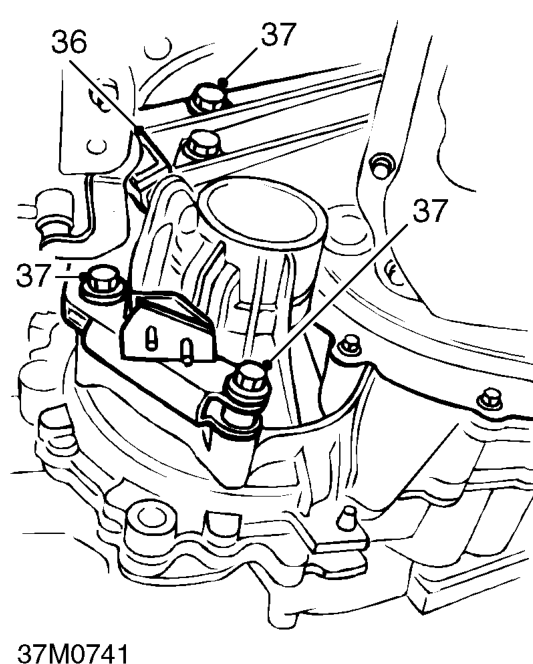

  1. Disconnect multiplug from vehicle speed sensor.
  2. Remove 3 bolts securing rear engine mounting bracket to engine.
  3. Remove flywheel rear cover plate.
Remove flywheel rear cover plate.

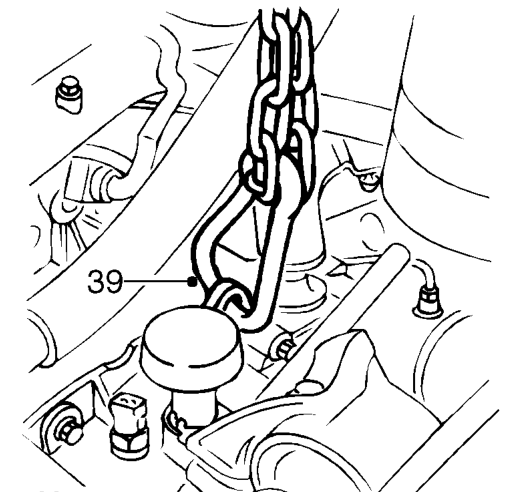

  1. Fit lifting eye to gearbox and connect suitable lifting equipment to lifting eye.
  2. Take weight of gearbox with lifting equipment.
