41. Release charcoal canister from mounting bracket and position aside.

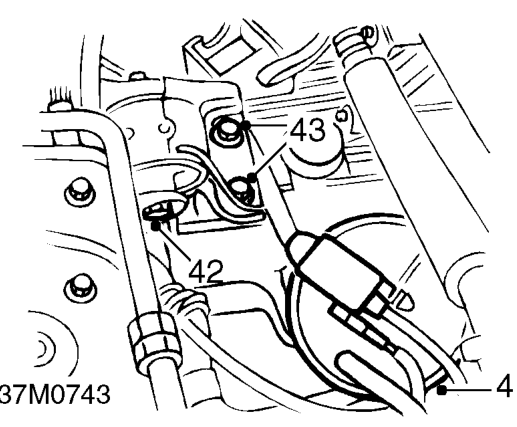

42. Loosen through bolt securing gearbox mounting to body.
43. Remove 2 bolts securing mounting bracket to gearbox.

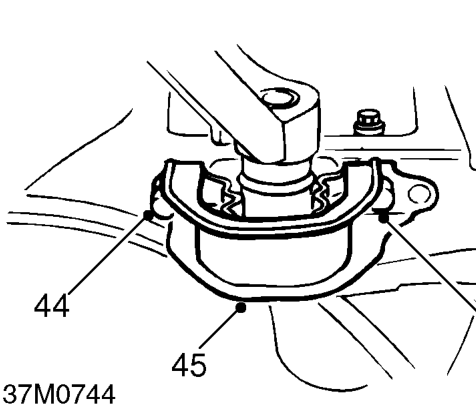

44. Remove 2 bolts securing LH torque mounting to body.
45. Fit wooden block to jack and position jack to support engine.

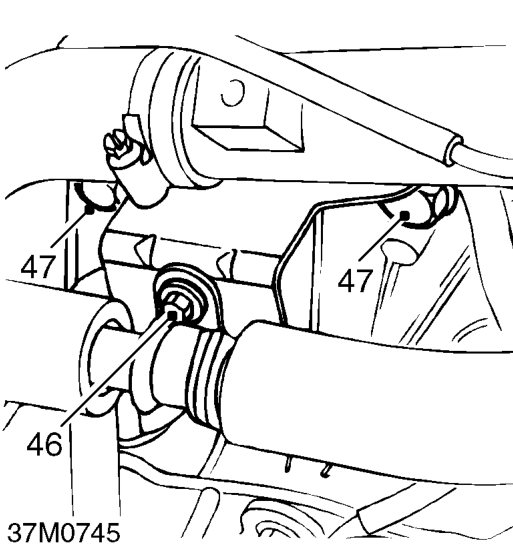

46. Remove bolt securing air conditioning pipe to bracket.
47. Models with air conditioning: Remove 2 bolts securing air conditioning pipe bracket to engine and gearbox.

48. Remove 2 lower bolts securing gearbox to engine.
49. Using assistance, release gearbox from engine.
50. Manoeuvre gearbox from engine and lower from vehicle.
51. Disconnect lifting equipment from gearbox and remove gearbox from beneath vehicle.
