Information: Special tools

Make

Rover

Model

600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition

Section

Information › Special tools

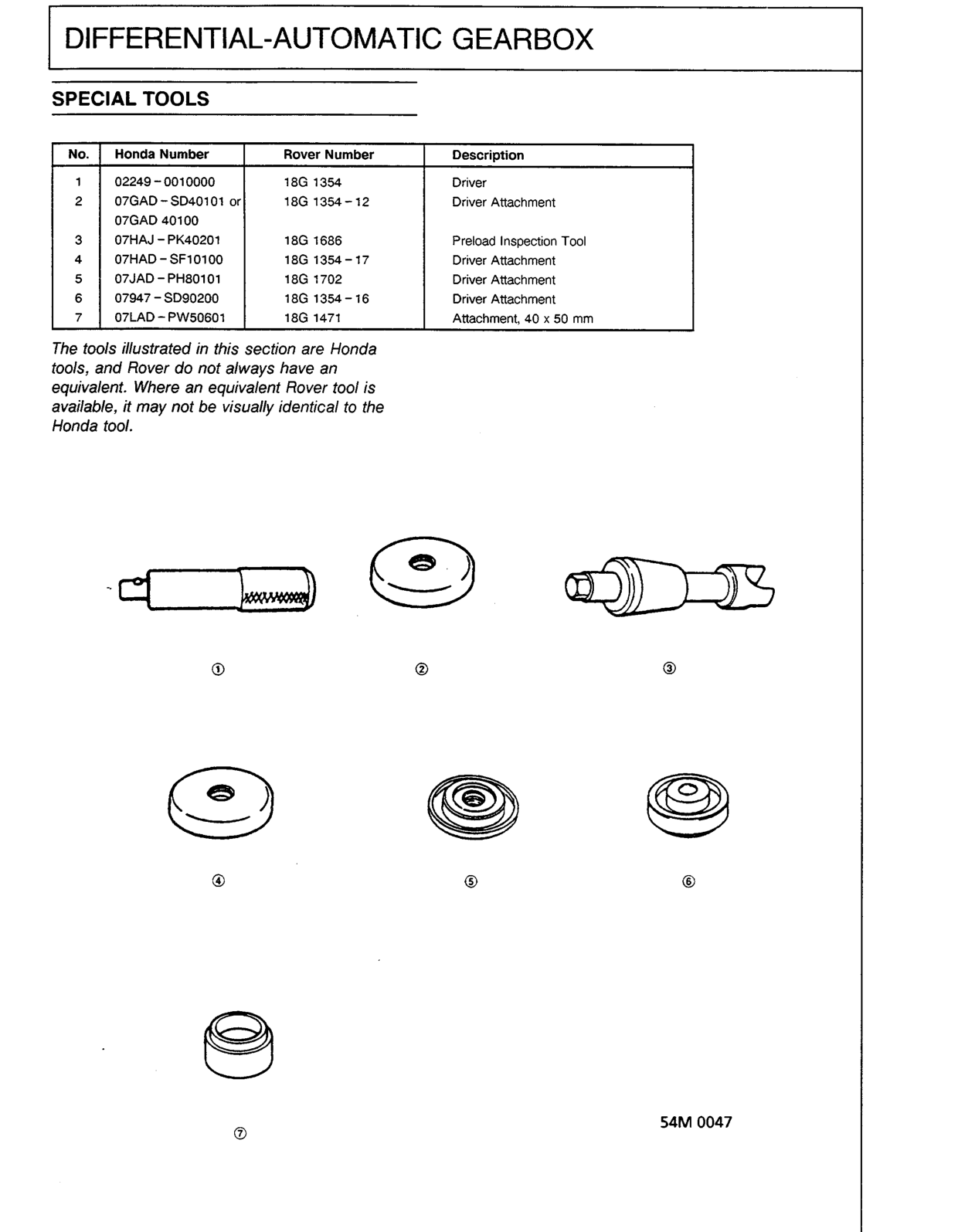

Differential – automatic gearboxSpecial tools

SPECIAL TOOLS

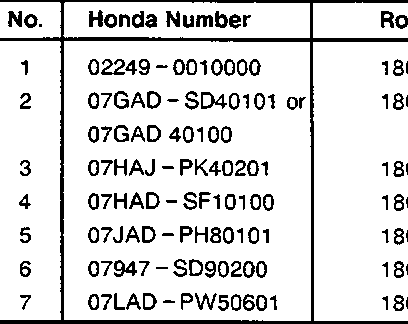

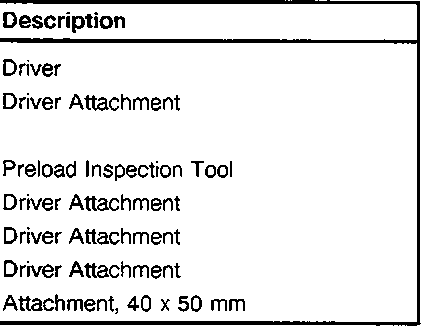

No.	Honda Number	Rover Number	Description
1	02249-0010000	18G 1354	Driver
2	07GAD-SD40101 or 07GAD 40100	18G 1354-12	Driver Attachment
3	07HAJ-PK40201	18G 1686	Preload Inspection Tool
4	07HAD-SF10100	18G 1354-17	Driver Attachment
5	07JAD-PH80101	18G 1702	Driver Attachment
6	07947-SD90200	18G 1354-16	Driver Attachment
7	07LAD-PW50601	18G 1471	Attachment, 40 x 50 mm

The tools illustrated in this section are Honda tools, and Rover do not always have an equivalent. Where an equivalent Rover tool is available, it may not be visually identical to the Honda tool.

1. Driver
2. Driver Attachment
3. Preload Inspection Tool

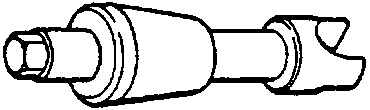

4. Driver Attachment
5. Driver Attachment
6. Driver Attachment

7. Attachment, 40 x 50 mm

54M 0047

Original page

View full sizeFit to page

11 Transmission
