Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition11 · Differential – automatic gearbox
11 · Transmission

Repairs

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Repairs
Differential – automatic gearboxRepairs

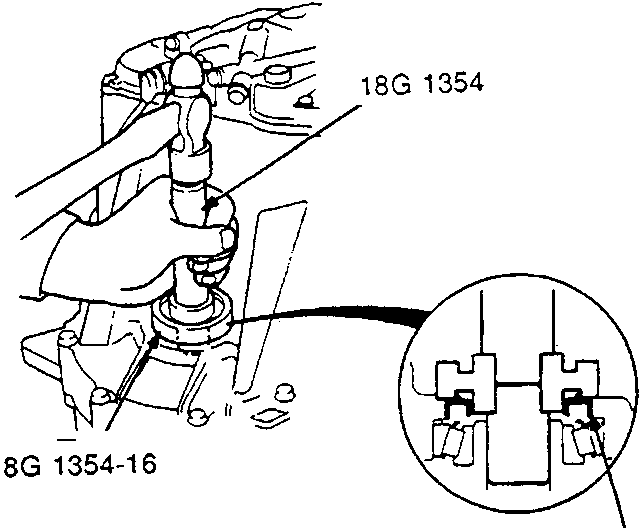

Diagram showing installation of oil seal using special tools 18G 1354 and 18G 1354-16
  1. A Oil seal

54M0044

  1. Install the oil seal in the transmission housing, using the special tools as shown.

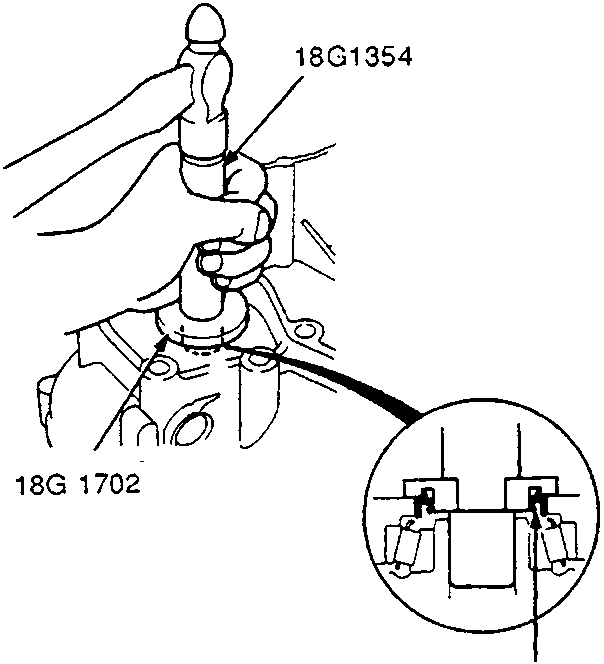

Diagram showing driving oil seal into torque converter housing using special tools 18G1354 and 18G 1702
  1. A Oil seal

54M0045

  1. Drive the oil seal into the torque converter housing, using the special tools as shown.
