Differential Inspection/Disassembly

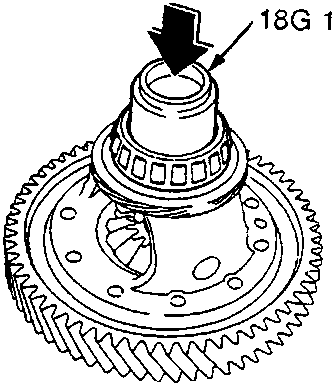

A Press

2. Install the new tapered roller bearings, using the special tool and a press as shown.

Note:

• Drive the bearings on until they bottom.
• Use the special tool:
  • large end for torque converter housing side bearing.
  • small end for transmission housing side bearing.

Note:

• The bearing and outer race should be replaced as a set.
• Inspect and adjust the bearing preload whenever a bearing is replaced.
• Drive in the bearings securely so that there is no clearance between the bearings and differential carrier.

Differential Inspection/Disassembly

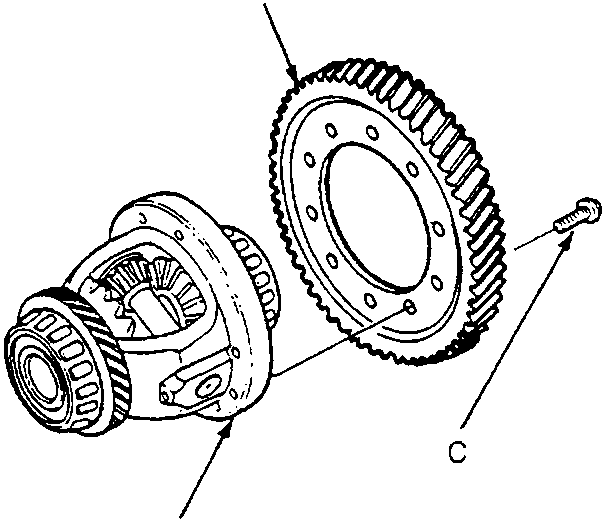

A Final Driven Gear
B Differential Carrier
C Bolt, 10 mm

1. Remove the final driven gear and inspect teeth for wear or damage.

Note: The final driven gear bolts have left-hand threads.

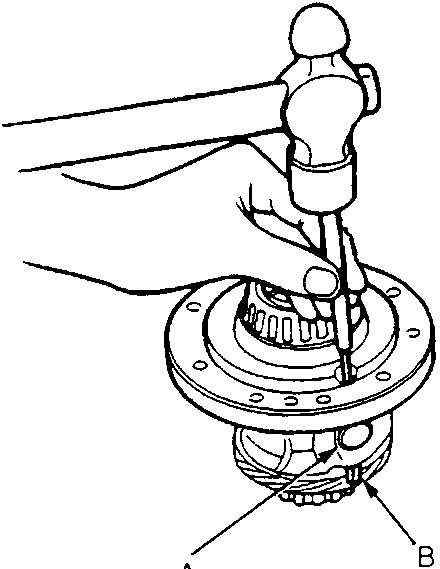

A Pinion Shaft
B Spring Pin

2. Drive out the spring pin, with the special tool. Discard the spring pin
