Caution:

Note: If the transmission housing, torque converter housing, differential carrier, taper roller bearing, outer race or thrust shim were replaced, the bearing preload must be adjusted.

1. Heat Gun
2. Thrust Shim
3. Transmission Housing
4. Taper Roller Bearing Outer Race

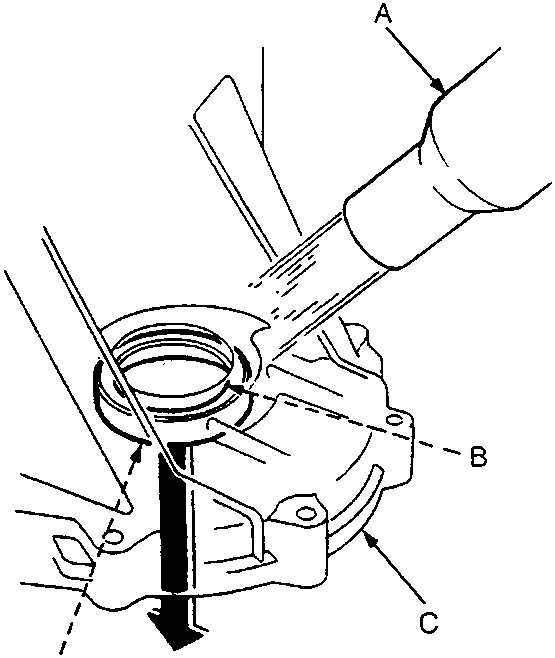

1. Remove the bearing outer race and thrust shim from the transmission housing by heating the housing to about 100°C with a heat gun.

CAUTION:

• Do not heat the housing in excess of 100°C.
• Replace the taper roller bearing when the outer race is to be replaced.
• Do not use a shim on the torque converter housing side.

Note: Let the transmission housing cool to the room temperature before adjusting the bearing preload.

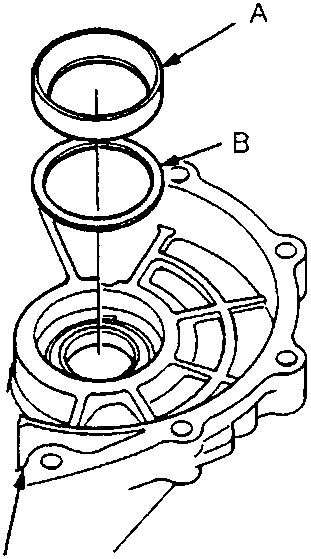

1. Bearing Outer Race
2. Thrust Shim
3. Transmission Housing
2. Fit a shim 2.60mm thick (standard size) into the transmission housing.

Note: If 2.60mm shim not available, two shims which together equal 2.60mm can be used.

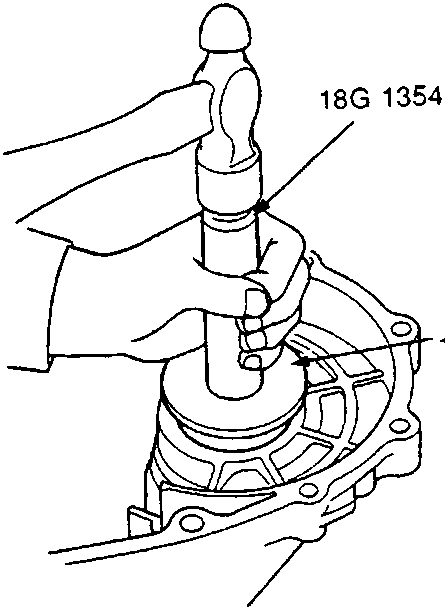

3. After installing the thrust shim, install the outer race in the transmission housing, using the special tools as shown.

CAUTION:

• Install the outer race squarely in the transmission housing.
