Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition11 · Differential – automatic gearbox
11 · Transmission

Differential Reassembly (page 3 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Differential – automatic gearboxDifferential Reassembly · page 3 of 3

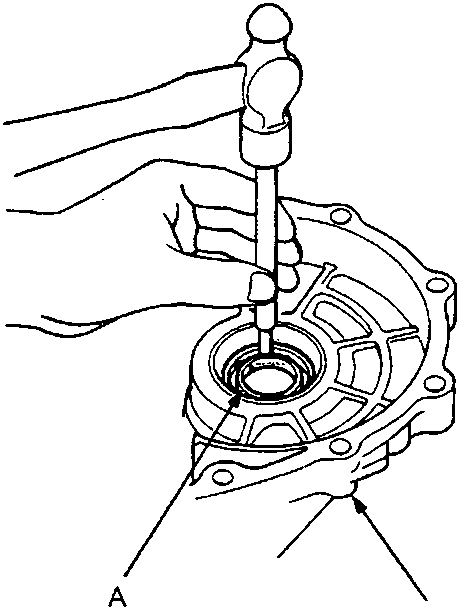

Diagram showing the removal of an oil seal from a transmission housing using a tool. Labels A and B point to components.

54M0036

  • A Oil Seal
  • B Transmission Housing
  1. Remove the differential assembly.
  2. Remove the oil seal from the transmission housing and discard.

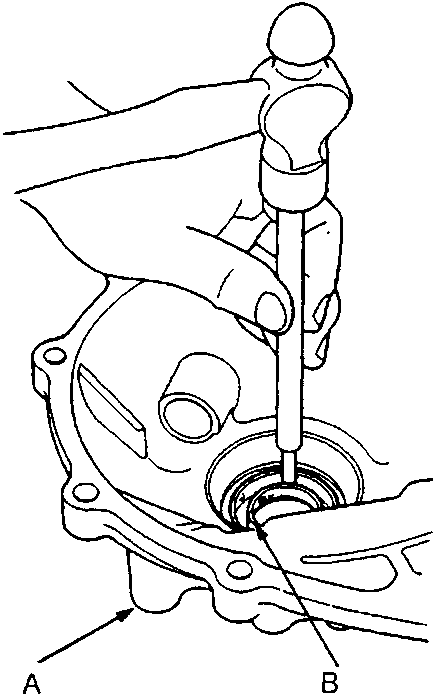

Diagram showing the removal of an oil seal from a torque converter housing using a tool. Labels A and B point to components.

54M0037

  • A Torque Converter Housing
  • B Oil Seal
  1. Remove the oil seal from the torque converter housing and discard.
