Engine management system – PGM-FiEmission Control System
Emission Control System
Note: Use TestBook or Microcheck to test the system.
How to use the symptom charts
- Across each row in the chart, the sub – systems that could be sources of a symptom are ranked in the order they should be inspected, starting with 1.
- Find the symptom in the left column, read across to the most likely source, then refer to the page listed at the top of that column. If inspection shows the system is OK, try the next system 2, etc.
| SUB – SYSTEM SYMTOM |
3 – way catalytic converter | Exhaust gas recirculation | Positive crankcase ventilation | Evaporative emission control |
|---|---|---|---|---|
| Rough idle | 1 | 2 | ||
| Frequent stalling after warming up | 1 | |||
| Misfire/Rough running | 1 | |||
| Fails emission test | 1 | 3 | 2 | |
| Loss of power | 1 | 2 |

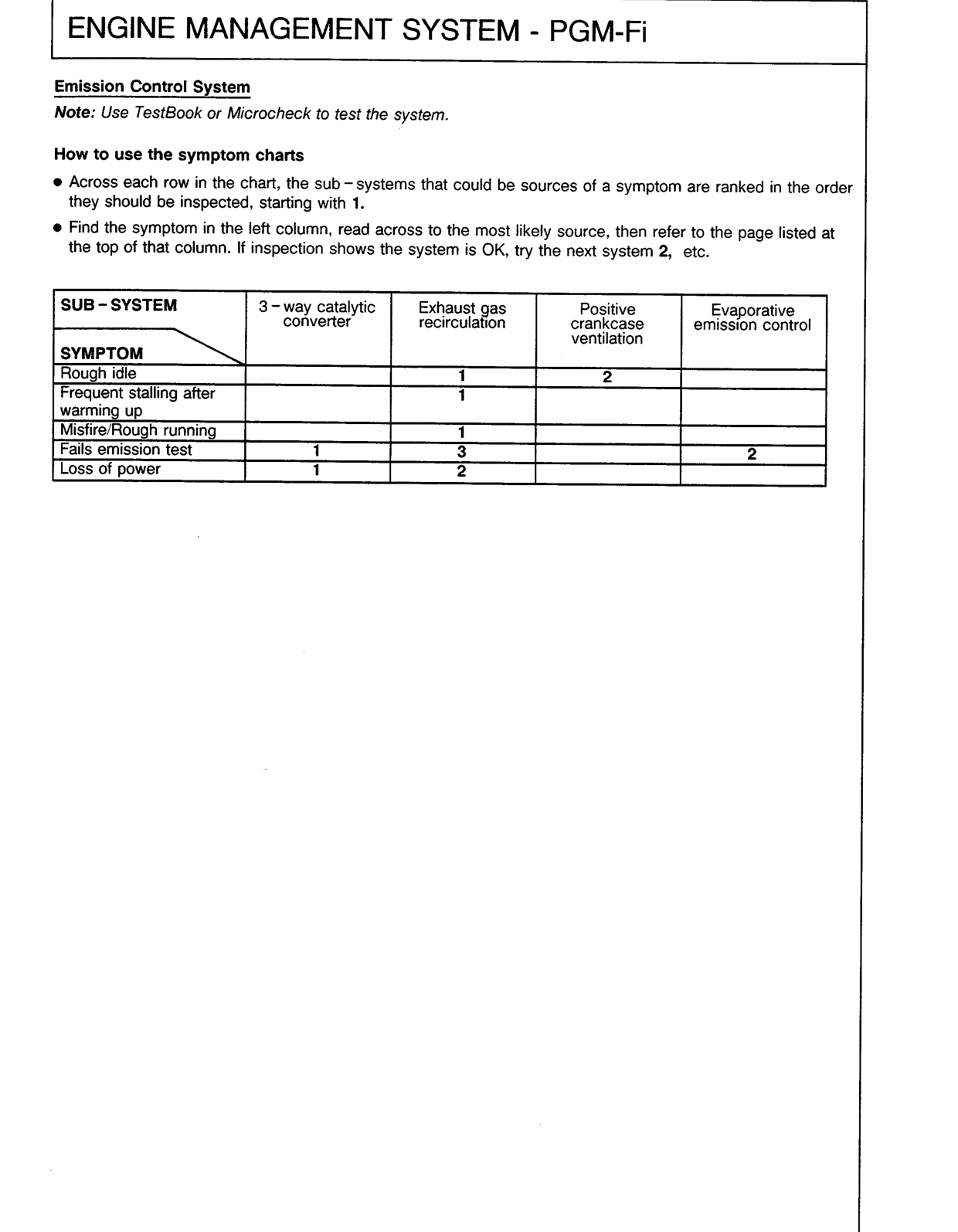

Original page
