Receiver drier

Refit

1. Fit condenser to radiator, fit and tighten bolts.
2. Remove caps from condenser and pipes.
3. Lubricate ’O’ rings with refrigerant oil and fit to pipes.
4. Position pipes to condenser, fit bolts and tighten to 17 Nm.
5. Position bonnet lock platform support and secure with bolts.
6. Fit NEW receiver drier. See this section.
7. Recharge air conditioning system. See Adjustments.
8. Reconnect both battery leads, earth lead last.

RECEIVER DRIER

Service repair no - 82.17.03

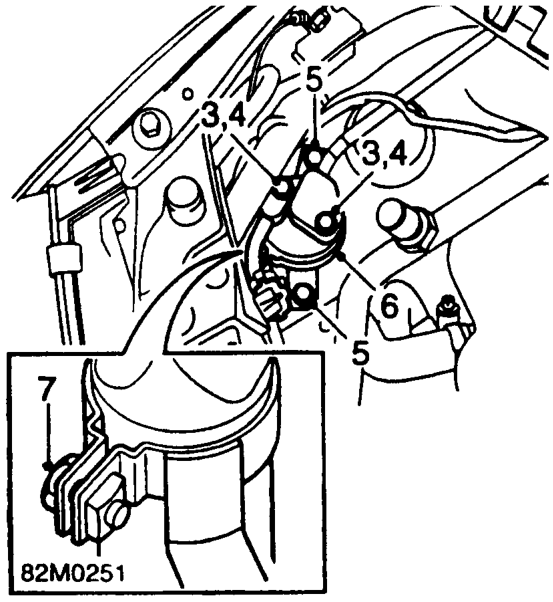

1. Release power steering fluid reservoir from mounting bracket.
2. Recover refrigerant from air conditioning system. See Adjustments.

3. Remove 2 bolts securing air conditioning pipes to receiver drier.
4. Remove and discard ’O’ rings from pipes.

CAUTION: Immediately cap all pipe joints to keep moisture and dirt out of system.

5. Remove 2 bolts securing receiver drier clamp bracket to inner wing valance.
6. Remove receiver drier assembly.
7. Slacken receiver drier clamp bracket bolt, remove bracket.
