CONDENSER

Service repair no - 82.15.07

Remove

  1. Disconnect both battery leads, earth lead first.
  2. Reclaim refrigerant from air conditioning system. See Adjustments.
Condenser – Reclaim refrigerant from air conditioning system. See Adjustments.
  1. Remove 4 bolts securing 2 radiator mounting brackets to bonnet lock platform.
  2. Remove radiator mounting brackets.

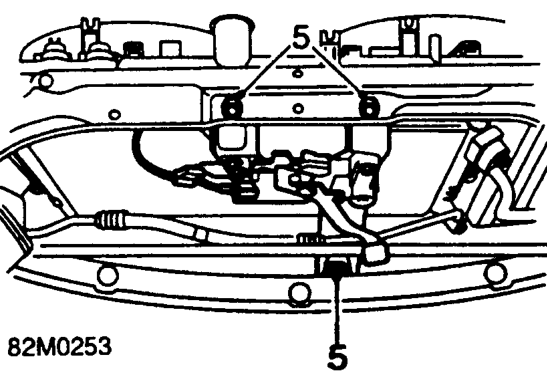

Condenser – Remove radiator mounting brackets.
  1. Remove 3 bolts securing bonnet lock platform support and position aside.

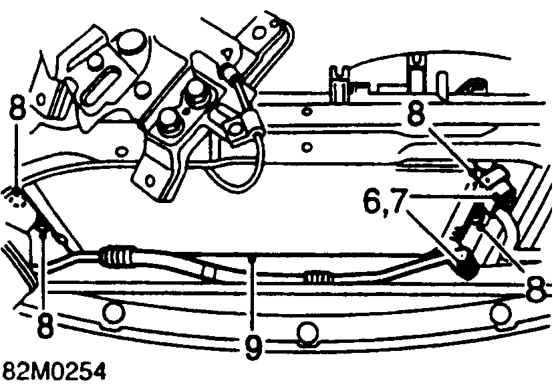

Condenser – Remove 3 bolts securing bonnet lock platform support and position aside.
  1. Remove 2 bolts securing condenser pipes.
  2. Remove ’O’ rings from pipes.

CAUTION: Immediately cap all joints to keep moisture and dirt out of system.

  1. Remove 4 bolts securing condenser to radiator.
  2. Remove condenser.
