COMPRESSOR

Service repair no - 82.10.20

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Disconnect battery earth lead.
  2. Remove drive belt. See MAINTENANCE.
Compressor – Remove drive belt. See MAINTENANCE.

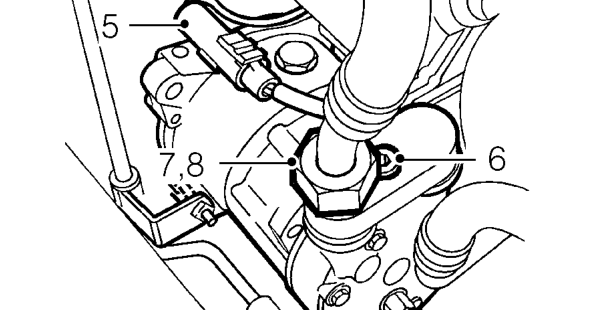

  1. Disconnect multiplug from compressor.
  2. Remove bolt securing air conditioning pipes to compressor.
  3. Release pipes from compressor.
  4. Remove and discard 2 ’O’ rings from compressor.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

Compressor – Remove and discard 2 ’O’ rings from compressor.
  1. Remove bolt securing air conditioning pipe to bonnet locking platform, move pipe aside.
Compressor – Remove bolt securing air conditioning pipe to bonnet locking platform, move pipe aside.

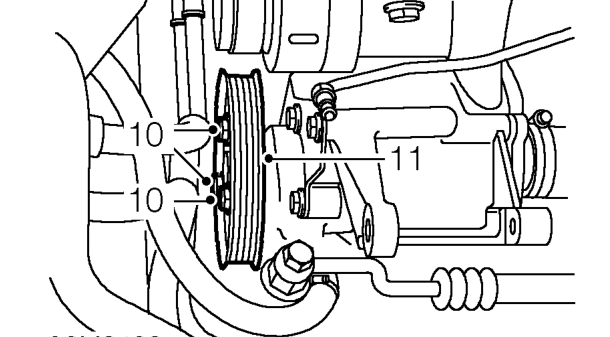

  1. Remove 3 Torx screws securing pulley to PAS pump.
  2. Remove PAS pump pulley.
