Rover 620 Diesel Repair Manual Supplement (1995-1999)07 · Clutch
07 · Transmission

Hydraulic system bleed (Clutch)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Adjustments › Hydraulic system bleed
ClutchHydraulic system bleed

HYDRAULIC SYSTEM BLEED

Service repair no - 33.15.01

Bleed

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove LH under belly panel. See BODY, Repairs.
  2. Top up clutch reservoir. See INFORMATION, Capacities, fluids and lubricants.
Hydraulic system bleed – Top up clutch reservoir. See INFORMATION, Capacities, fluids and lubricants.

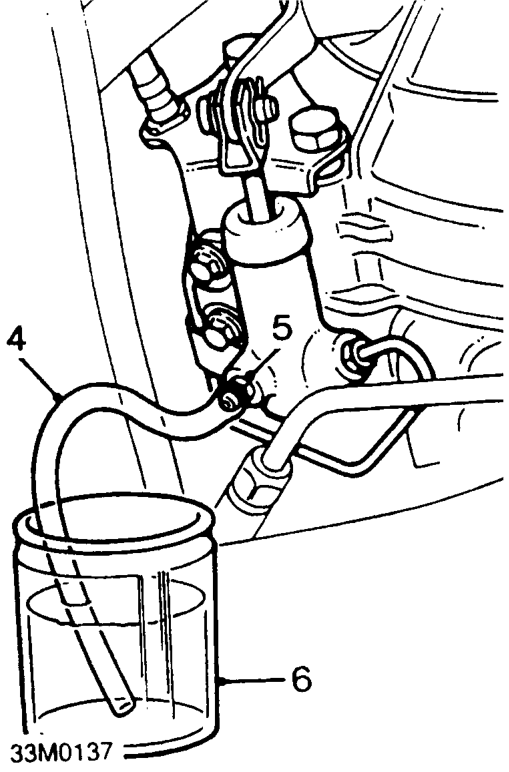

  1. Connect clear bleed tube to bleed screw on slave cylinder. Locate end of tube in a container containing fluid.1
  2. Slacken bleed screw /2 turn.
  3. Press clutch pedal slowly to the floor. Repeat until bubble free fluid enters the container.

CAUTION: Ensure that fluid level in reservoir is maintained during the complete operational sequence using new fluid.

  1. Tighten bleed screw to 9 Nm.
  2. Check clutch pedal and release lever action.
  3. Fit LH under belly panel. See BODY, Repairs.
  4. Remove stand(s) and lower vehicle.
