Slave cylinder

SLAVE CYLINDER

Service repair no - 33.35.01

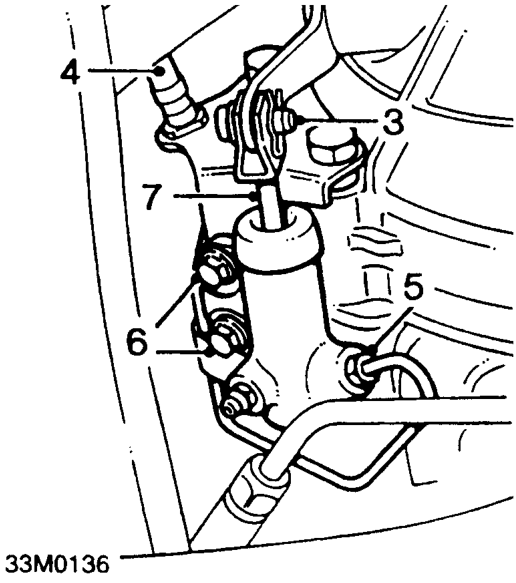

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove LH under belly panel. See BODY, Repairs.

3. Remove ’R’ clip and washer and withdraw clevis pin from push rod and release lever.
4. Fit hose clamp to slave cylinder hose.
5. Unscrew pipe union from slave cylinder.
6. Remove 2 bolts securing slave cylinder to gearbox.
7. Release from push rod and remove slave cylinder.

Refit

1. Position slave cylinder and engage push rod on release lever.
2. Attach slave cylinder to gearbox, tighten bolts to 22 Nm.
3. Connect pipe union and remove hose clamp.
4. Fit clevis pin to push rod and release lever, retain with washer and ’R’ clip.
5. Fit LH under belly panel. See BODY, Repairs.
6. Remove stand(s) and lower vehicle.
7. Bleed clutch system. See Adjustments.
