Drive plate and release bearing

DRIVE PLATE AND RELEASE BEARING

Service repair no - 33.10.02 - Drive plate Service repair no - 33.25.12 - Release bearing

Remove

1. Remove gearbox assembly. See MANUAL GEARBOX, Repairs.

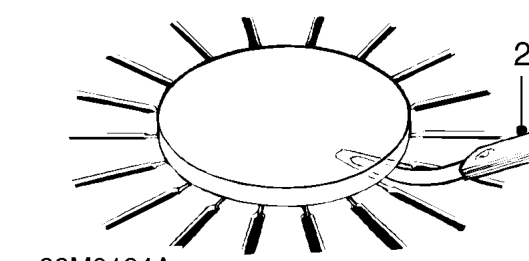

2. Place a circular piece of flat plate across diaphragm fingers and insert feeler gauges between plate and fingers; measure finger clearance. DATA: Diaphragm finger clearance - service limit = 1.0 mm Renew pressure plate if clearance obtained is outside service limits.

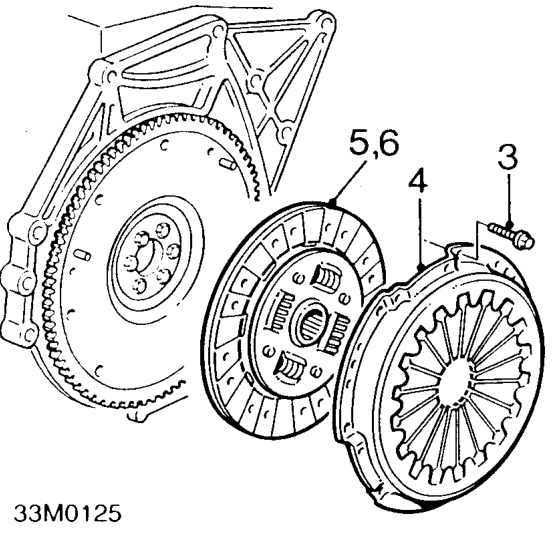

3. Progressively slacken then remove 6 bolts securing pressure plate to flywheel.
4. Remove pressure plate.
5. Remove clutch plate.
6. Inspect clutch linings for signs of wear or oil contamination. Check for broken or weak springs and signs of spring apertures cracking; renew components as necessary.

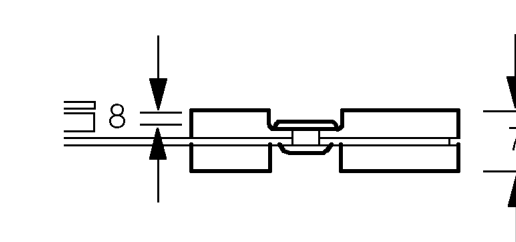

7. Measure clutch plate thickness, renew plate if less than service limit. DATA: Clutch plate thickness - new clutch plate = 7.1 - 7.5 mm - service limit = 5.8 mm
8. Measure rivet depth, renew plate if less than service limit. DATA: Rivet depth - new clutch plate = 1.0 mm - service limit = 0.2 mm
