ClutchHydraulic damper

HYDRAULIC DAMPER

Service repair no - 33.15.05

Remove

  1. Remove LH under belly panel. See BODY, Repairs.
  2. Remove under belly panel. See BODY, Repairs.

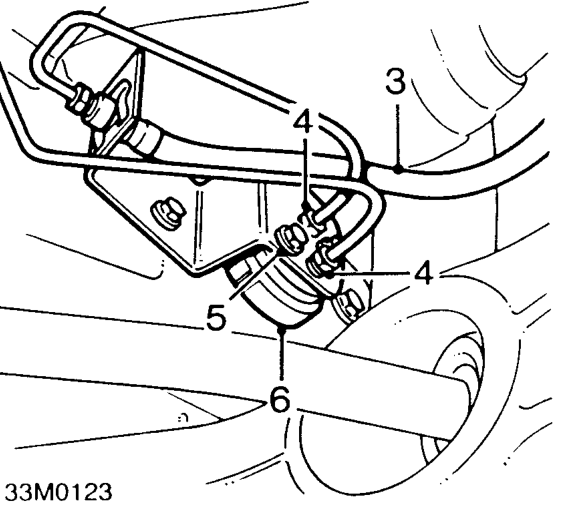

Hydraulic damper – Remove under belly panel. See BODY, Repairs.
  1. Fit hose clamp to master cylinder hose.
  2. Unscrew 2 pipe unions and disconnect pipes from damper.

CAUTION: Plug the connections.

  1. Remove 2 bolts securing damper to bracket.
  2. Withdraw damper from bracket.

Refit

  1. Position damper in bracket, tighten bolts to 10 Nm.
  2. Engage and tighten pipe unions to damper.
  3. Remove hose clamp.
  4. Bleed clutch system. See Adjustments.
  5. Fit under belly panel. See BODY, Repairs.
  6. Fit LH under belly;refit panel. See BODY, Repairs.
