Release bearing

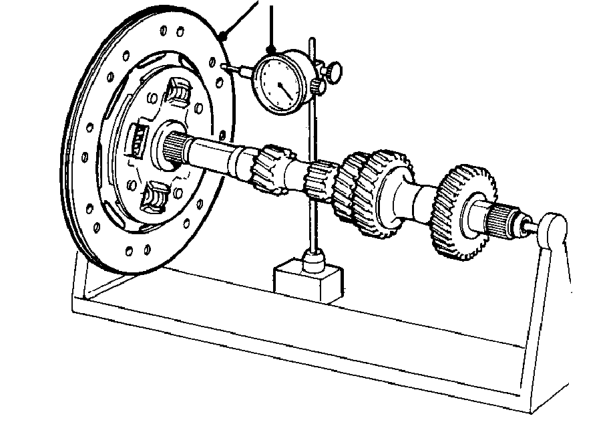

9. Measure clutch plate run-out using a dial gauge and a gearbox mainshaft; renew plate if outside service limit. DATA: Clutch plate run-out - new clutch plate = 0.8 mm - service limit = 1.0 mm
10. Check clutch plate for signs of wear or damage. Check for signs of overheating on drive straps (deep straw to blue colour); renew pressure plate if necessary.

CAUTION: Renew a pressure plate which has been accidentally dropped.

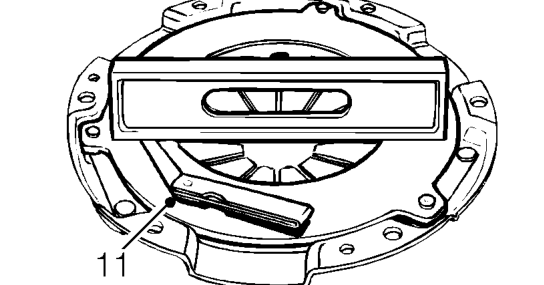

11. Using a straight edge and feeler gauges, check surface of pressure plate for warping at 4 separate points, renew plate if warping exceeds service limited. DATA: Pressure plate warping - service limit = 0.18 mm

Release bearing

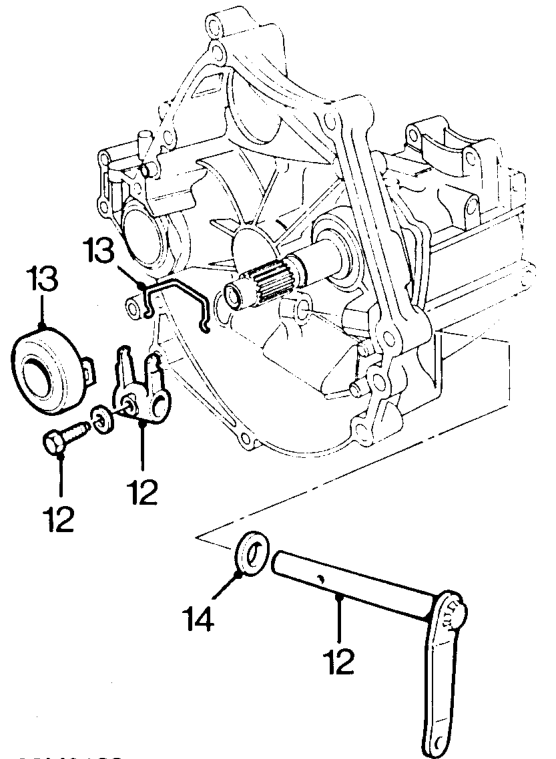

12. Remove bolt securing release fork to shaft, withdraw shaft; recover fork.
13. Release spring securing release bearing, remove bearing.
14. Remove shaft oil seal from housing; discard seal.
15. Examine release bearing for signs of wear or damage, renew if necessary.
