Rear suspension

Rear suspension

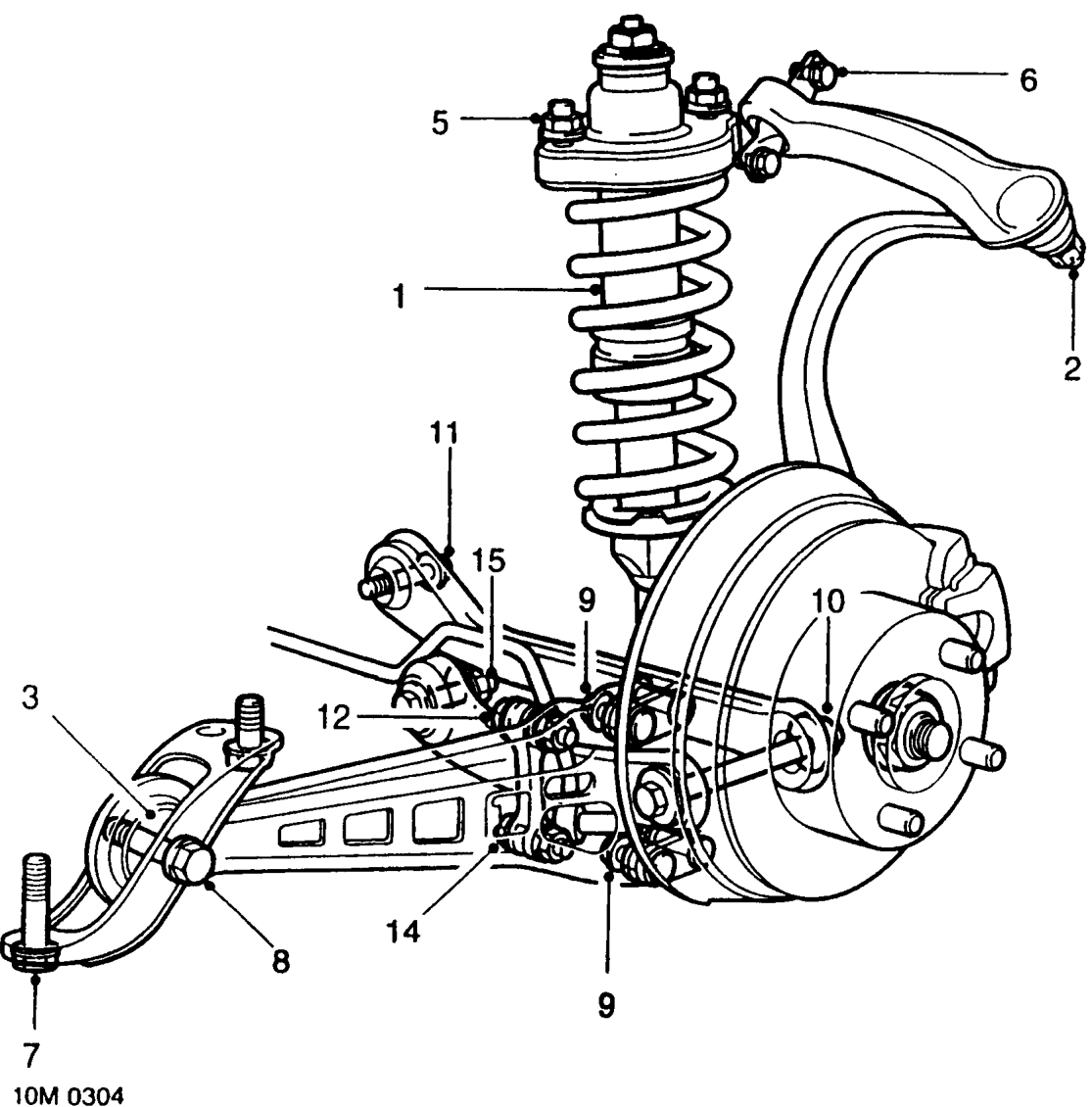

1. Check suspension dampers for oil leaks.
2. Check that split pin is fitted to upper arm ball joint nuts.
3. Check condition of trailing arm bush.
4. Check condition of lower arm bushes.
5. Check damper top mounting, nuts - 39 Nm.
6. Check upper arm to body, bolts - 39 Nm.
7. Check trailing arm bracket to body, bolts - 65 Nm.
8. Check trailing arm to bracket, bolt - 65 Nm.
9. Check trailing arm to knuckle, nuts - 36 Nm.
10. Check lower arms to knuckle, nut and through bolt - 65 Nm.
11. Check lower arm to body, bolt - 65 Nm.
12. Check lower arm to body, bolt - 55 Nm.
13. Check damper to knuckle, bolt - 55 Nm.
14. Check anti-roll bar to link, bolt - 13 Nm.
15. Check anti-roll bar link to lower arm, bolt - 13 Nm.
