Camshaft timing belt

Renew

1. Using a 15 mm ring spanner on drive belt tensioner pulley bolt, rotate pulley fully clockwise and hold.
2. Using assistance, release drive belt from alternator pulley.
3. Remove drive belt from remaining pulleys and remove from vehicle.
4. Clean drive belt pulley grooves and ensure grooves are not damaged.
5. Fit new drive belt around pulleys, except alternator pulley, ensure belt is correctly aligned in pulley grooves.
6. Hold tensioner pulley fully clockwise, using assistance fit drive belt around alternator pulley.
7. Remove ring spanner from tensioner pulley bolt.
8. Refit LH under belly panel. See BODY, Repairs.
9. Remove stand(s) and lower vehicle.

CAMSHAFT TIMING BELT

Service repair no - 12.65.18

Remove

1. Disconnect battery earth lead.
2. Remove drive belt. See this section.

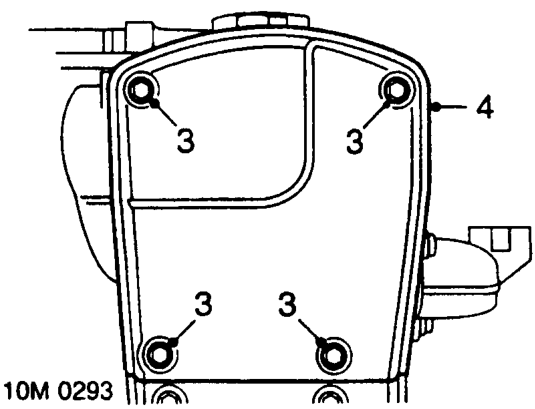

3. Remove 4 bolts securing camshaft timing belt top cover.
4. Remove top cover.
