Rear disc brakes

REAR DISC BRAKES

Check

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

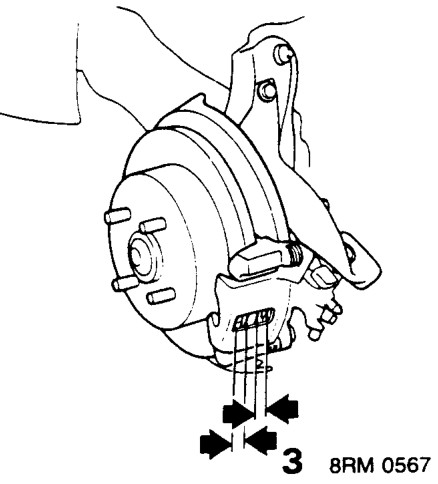

3. Check brake pads visually and assess pad thickness.

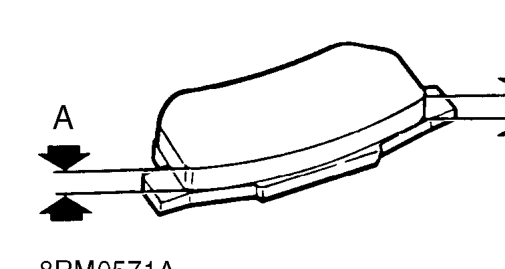

DATA: Minimum brake pad thickness A = 3 mm.

NOTE: Measurement does not include pad backing thickness. If brake pads have worn to less than the recommended thickness they must be replaced. See BRAKES, Repairs.

WARNING: Brake pads must be renewed in axle sets only. Braking efficiency may otherwise be impaired.

BODY

Locks, hinges and latch mechanism (not steering lock)

1. Functionally check operation of all locks.
2. Operate front door lock and check that electric central door locking operates.
3. Ensure that all locks, hinges and latch mechanisms are lubricated using Door Lock and Latch Lubricant, Part No. VWN 10075. Inject grease sparingly into lock barrels. Clean off any surplus grease. DO NOT lubricate the steering lock.
4. Lubricate sunroof lid seal very sparingly using Non-Staining Grease BAU 5812 (Corning No. 7).

Exterior paintwork and body panels

1. Visually check paintwork and body panels for damage and corrosion.

Underbody sealer

1. Visually check underbody sealer for damage and continuity.
