Brake light switch

BRAKE LIGHT SWITCH

Service repair no - 70.35.42

Remove

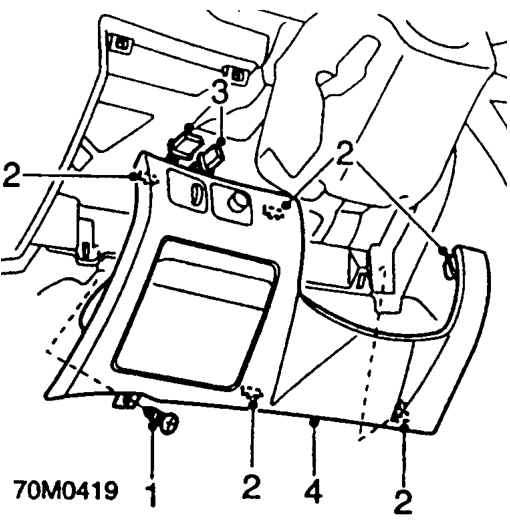

1. Remove screw securing lower fascia closing panel to fascia.
2. Release 5 clips securing lower fascia closing panel to fascia.
3. Disconnect instrument illumination dimmer switch multiplug. Models fitted with headlamp levelling: Disconnect multiplug from headlamp levelling switch.
4. Remove lower fascia closing panel.

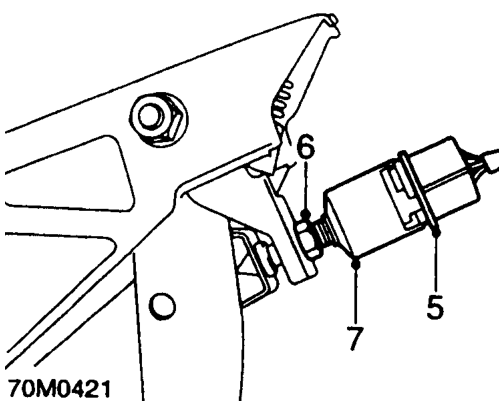

5. Disconnect multiplug from brake light switch.
6. Slacken brake light switch locknut
7. Unscrew and remove brake light switch from mounting bracket.

Refit

1. Screw brake light switch into mounting bracket until switch plunger contacts brake pedal.
2. Connect multiplug to brake light switch.
3. Adjust brake light switch. See Adjustments.
4. Connect multiplug to instrument illumination dimmer switch. Models fitted with headlamp levelling: Position lower fascia closing panel and connect multiplug to headlamp levelling switch.
5. Align lower fascia closing panel to fascia and press to secure retaining clips.
6. Fit screw securing lower fascia closing panel to fascia.
