ABS2E HYDRAULIC MODULATOR

Service repair no - 70.25.12

Remove

  1. Disconnect battery earth lead.
  2. Remove ECU from hydraulic modulator. See this section.
Abs2e hydraulic modulator – Remove ECU from hydraulic modulator. See this section.

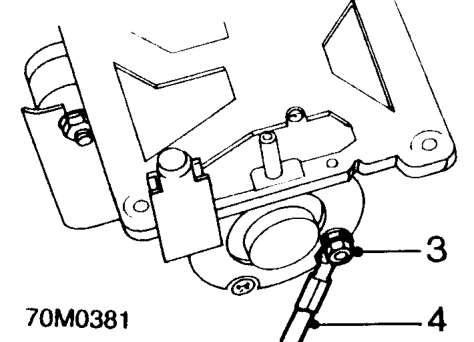

  1. Remove nut securing earth lead to hydraulic modulator.
  2. Disconnect earth lead and move aside.
Abs2e hydraulic modulator – Disconnect earth lead and move aside.

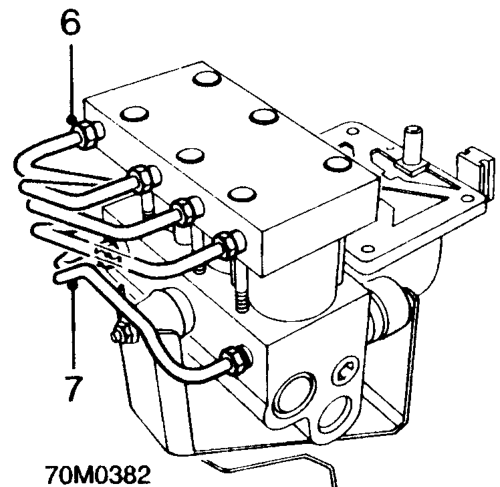

  1. Position absorbent cloth below modulator brake pipe unions to collect any spillage of brake fluid.
  2. Slacken 5 brake pipe unions.
  3. Disconnect 5 pipe unions from modulator.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

  1. Plug the ends of the brake pipes and the modulator ports.
Abs2e hydraulic modulator – Plug the ends of the brake pipes and the modulator ports.

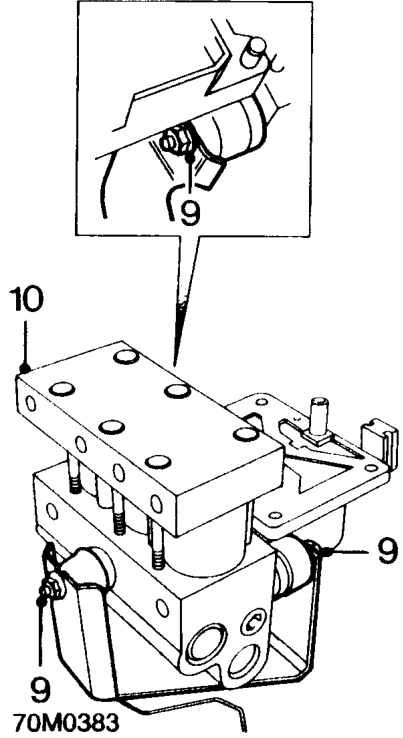

  1. Slacken 3 mounting nuts from modulator.
  2. Remove hydraulic modulator from vehicle. Do not carry out further dismantling if component is removed for access only.
  3. Remove 3 mounting rubbers from modulator.
  4. Fit mounting rubbers to new modulator.
