INLET MANIFOLD

Service repair no - 30.15.08

Remove

  1. Remove exhaust manifold. See this section.

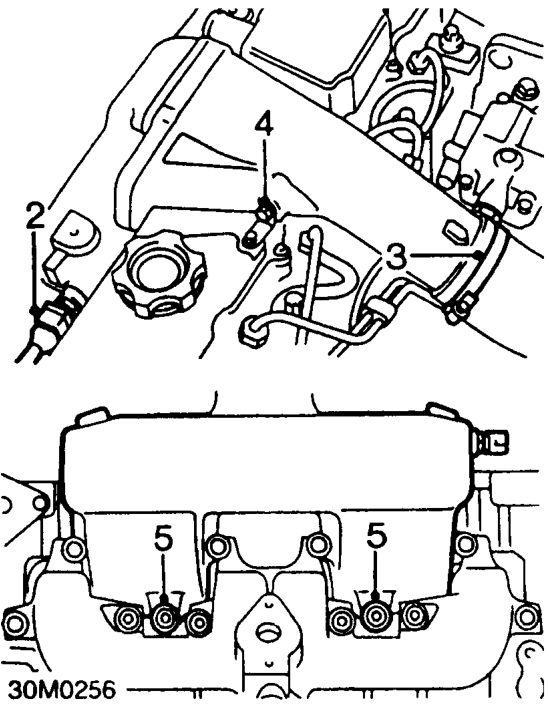

Inlet manifold – Remove exhaust manifold. See this section.
  1. Disconnect multiplug from intake air temperature sensor.
  2. Slacken clip and disconnect intercooler top hose from intake pipe.
  3. Remove bolt securing intake pipe to camshaft cover bracket.
  4. Remove 2 nuts securing inlet manifold to cylinder head.
  5. Remove inlet manifold.

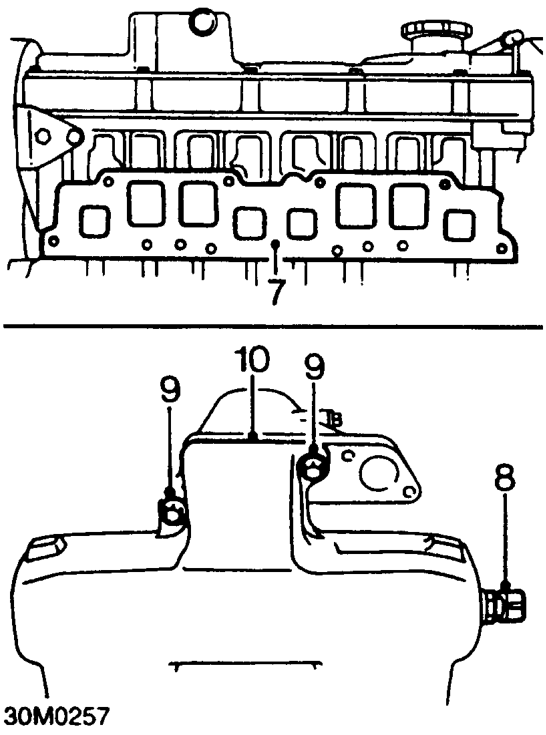

Inlet manifold – Remove inlet manifold.
  1. Remove and discard manifold gasket. Do not carry out further dismantling if component is removed for access only.
  2. Remove intake air temperature sensor.
  3. Remove 2 bolts securing intake pipe to inlet manifold.
  4. Remove and discard gasket.
  5. Clean mating faces of inlet manifold and intake pipe.
  6. Fit new gasket and align intake pipe to inlet manifold, fit bolts and tighten to 25 Nm.
  7. Clean threads of intake air temperature sensor and apply Loctite 577.
  8. Fit sensor to inlet manifold and tighten to 12 Nm.
