FRONT PIPE AND FLANGE GASKET

Service repair no - Front pipe - 30.10.09 Flange gasket - 30.10.26

Remove

  1. Disconnect battery earth lead.
  2. Raise vehicle on a ramp.
  3. Remove LH under belly panel. See BODY, Repairs.

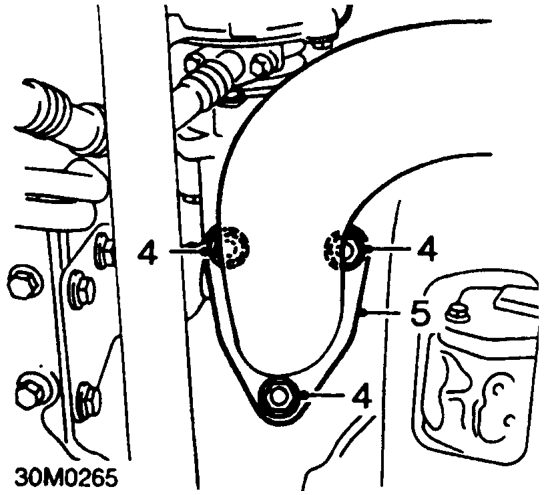

Front pipe and flange gasket – Remove LH under belly panel. See BODY, Repairs.
  1. Remove 3 nuts from flange joint.
  2. Remove and discard gasket from flange.

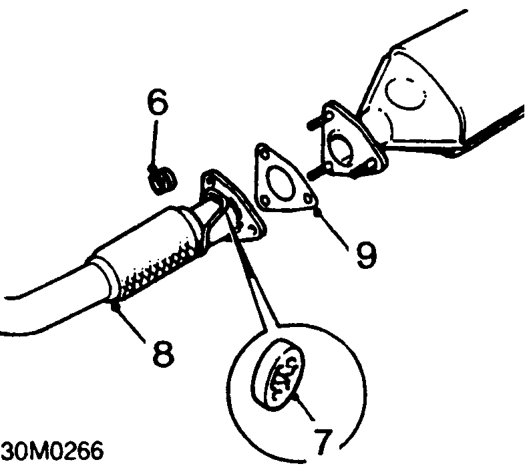

Front pipe and flange gasket – Remove and discard gasket from flange.
  1. Remove 3 nuts securing front pipe to catalytic converter.
  2. Disconnect rubber mounting from front pipe.
  3. Remove front pipe from vehicle.
  4. Remove and discard gasket, front pipe to catalytic converter.

Refit

  1. Clean all mating faces.
  2. Position a new flange gasket and fit front pipe to manifold, tighten nuts to 45 Nm.
  3. Position a new gasket and fit front pipe to catalytic converter; fit nuts and tighten to 34 Nm.
  4. Connect rubber mounting to front pipe.
  5. Lower ramp.
  6. Fit LH under belly panel. See BODY, Repairs.
  7. Connect battery earth lead.
