Manifold & exhaust systemsExhaust manifold · page 1 of 4

Refit

  1. Clean mating faces of inlet manifold and cylinder head.
  2. Fit new manifold gasket.
  3. Position inlet manifold to cylinder head, fit nuts but do not fully tighten.
  4. Align intake pipe to bracket on camshaft cover, fit bolt and tighten to 9 Nm.
  5. Connect intercooler top hose to intake pipe and tighten clip.
  6. Connect multiplug to intake air temperature sensor.
  7. Fit exhaust manifold. See this section.

EXHAUST MANIFOLD

Service repair no - 30.15.12

Remove

  1. Disconnect battery earth lead.
Exhaust manifold – Disconnect battery earth lead.

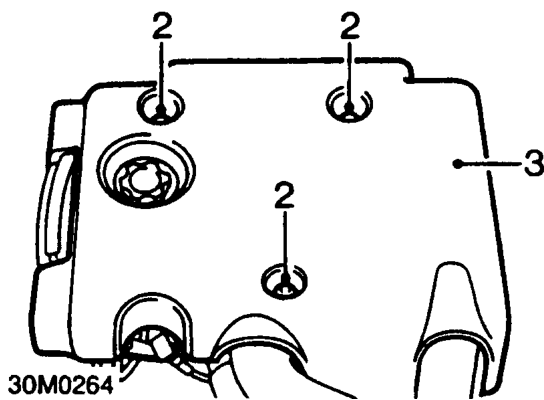

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
