POWER STEERING PUMP

Service repair no - 57.20.14

Remove

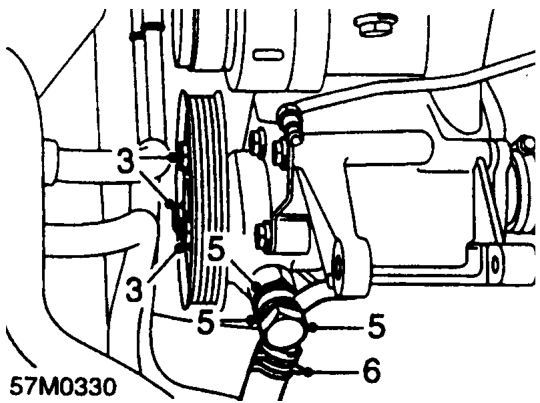

Power steering pump – Service repair no - 57.20.14
  1. Disconnect battery earth lead.
  2. Remove alternator. See ELECTRICAL, Repairs.
  3. Remove 3 bolts securing pulley to power steering pump, remove pulley.
  4. Position container beneath power steering pump to collect oil spillage.
  5. Remove banjo bolt securing high pressure hose to steering pump, remove and discard 2 sealing washers.
  6. Release clip and disconnect feed hose from steering pump.

CAUTION: Plug the connections.

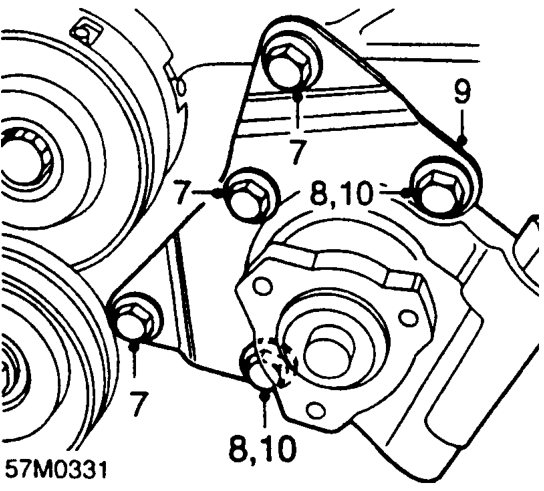

Power steering pump – Release clip and disconnect feed hose from steering pump.
  1. Noting their fitted positions, remove 3 short bolts securing support bracket to steering pump and coolant pump housing
  2. Slacken 2 long bolts securing steering pump and support bracket to coolant pump housing.
  3. Release steering pump and support bracket from coolant pump housing.
  4. Remove bolts and support bracket.
  5. Remove power steering pump.
