Description and operation › Heater distribution and blend unit components
Air conditioningHeater distribution and blend unit components · page 1 of 3

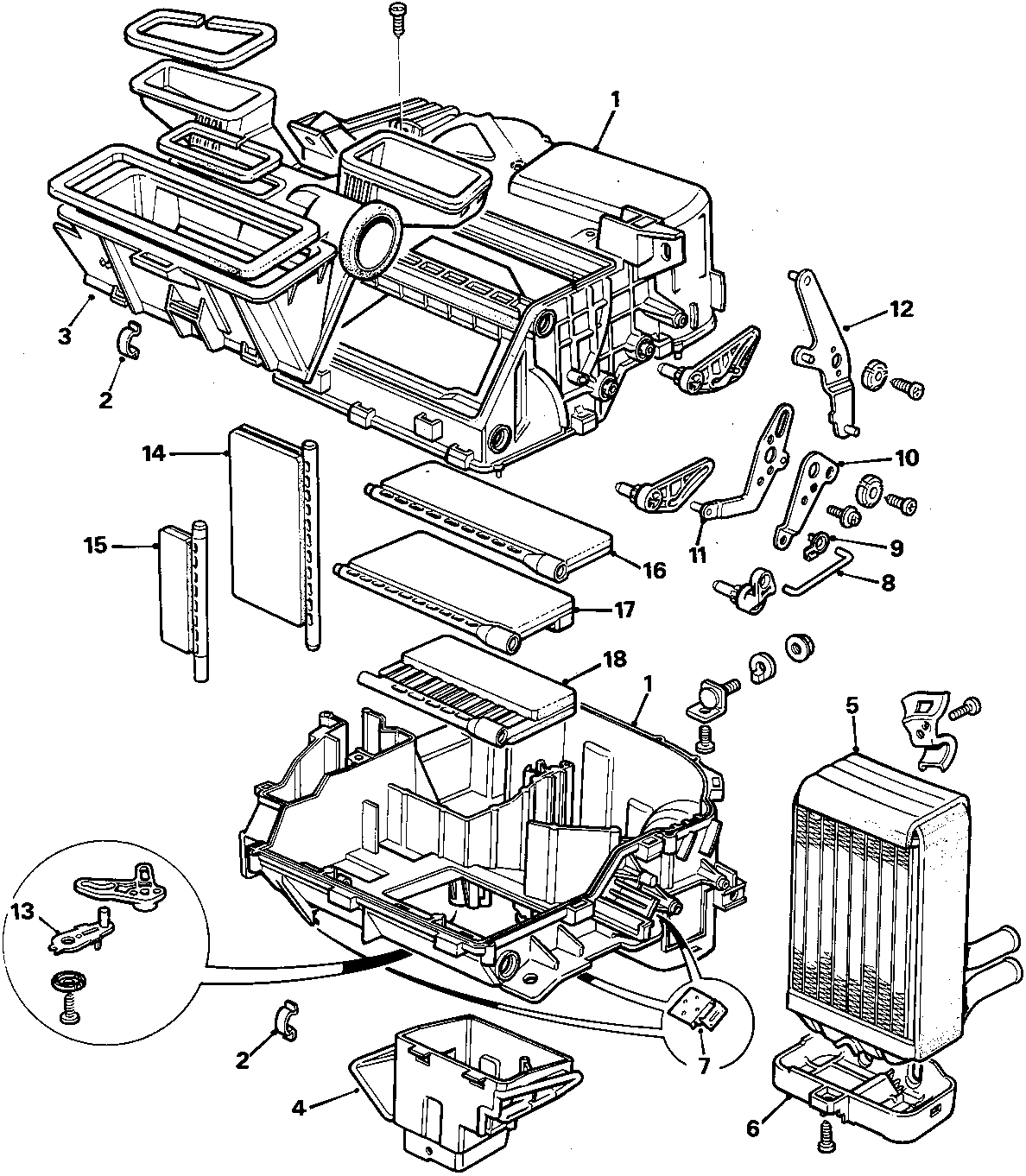

Exploded view diagram of the heater distribution and blend unit components showing the heater case, matrix, ducts, flap levers, links, and distribution flaps with numbered callouts 1 through 18.

HEATER DISTRIBUTION AND BLEND UNIT COMPONENTS

8RM 0927

  1. Heater case
  2. Heater case clip
  3. Face level/windscreen duct
  4. Foot level duct
  5. Heater matrix
  6. Heater matrix cover
  7. Cable clip
  8. Foot level flap link
  9. Link clip
  10. Foot level flap idler lever
  11. Face level flap idler lever
  12. Flap operating lever
  13. Blend flap lever
  14. Blend flap
  15. Ambient air flap – centre face level vents
  16. Distribution flap – windscreen
  17. Distribution flap – face level vents
  18. Distribution flap – foot level vents
