Description and operation › Schematic layout of the air conditioning system
Air conditioningSchematic layout of the air conditioning system

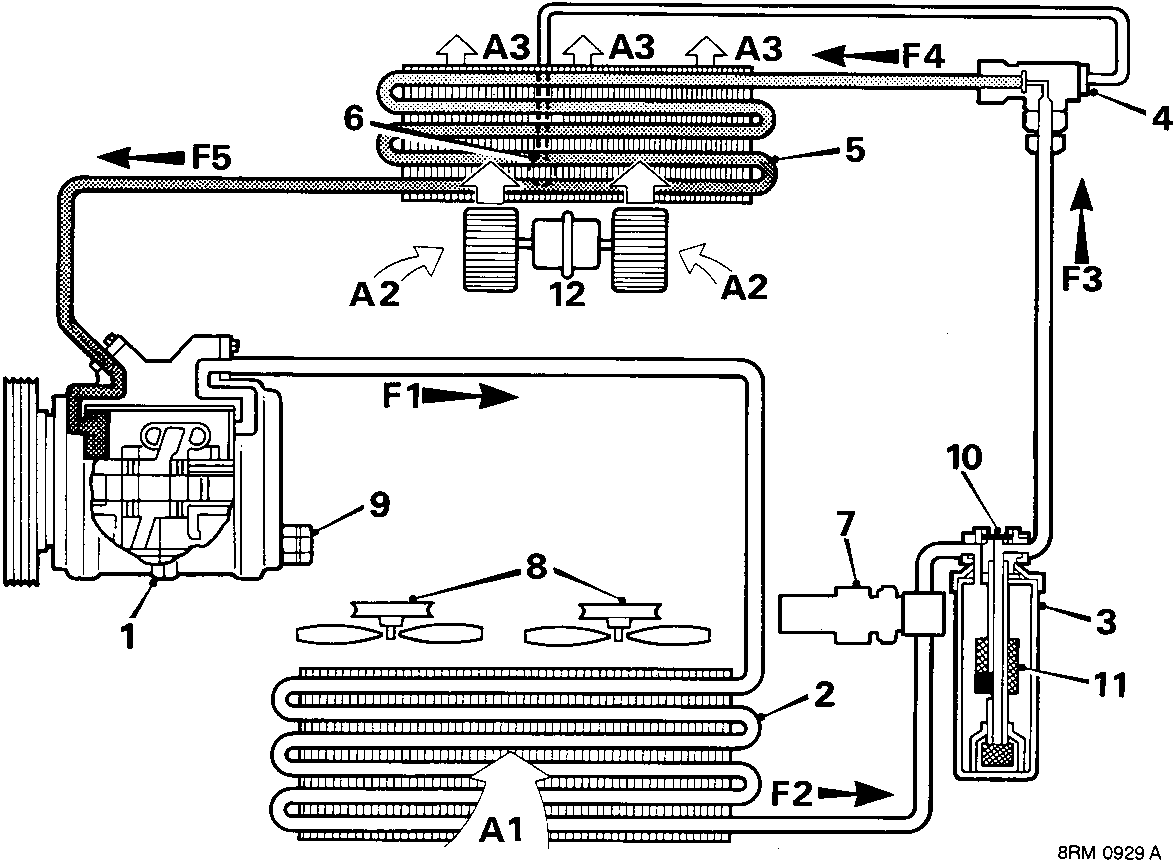

Schematic diagram of the air conditioning system showing components including compressor, condenser, receiver/drier, expansion valve, evaporator, and associated airflow paths labeled A1 through A3 and refrigerant flow states F1 through F5.

SCHEMATIC LAYOUT OF THE AIR CONDITIONING SYSTEM

  1. Compressor
  2. Condenser
  3. Receiver/drier
  4. Thermostatic expansion valve
  5. Evaporator
  6. Capillary tube
  7. Trinary pressure switch – 1.4 and 2.0 engine
    Dual pressure switch – 1.6 engine
  8. Cooling fans to increase air flow
  9. Compressor high pressure relief valve
  10. Sight glass – receiver/drier
  11. Drying agent – receiver/drier
  12. Blower motors

A1. Ambient air flow through condenser

A2. Ambient air flow through fan and evaporator

A3. Cooled air flow to vehicle interior

F1. High pressure high temperature refrigerant vapour

F2. High pressure slightly subcooled refrigerant liquid

F3. High pressure slightly subcooled refrigerant liquid with moisture, vapour bubbles and foreign matter removed

F4. Low pressure low temperature mixed liquid and valour

F5. Low pressure slightly superheated refrigerant vapour
