Automatic gearboxRemove

Service Repair No. 54.10.18

Remove

  1. Raise front of vehicle – L.H. side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Position drain tin to collect oil spillage from gearbox.

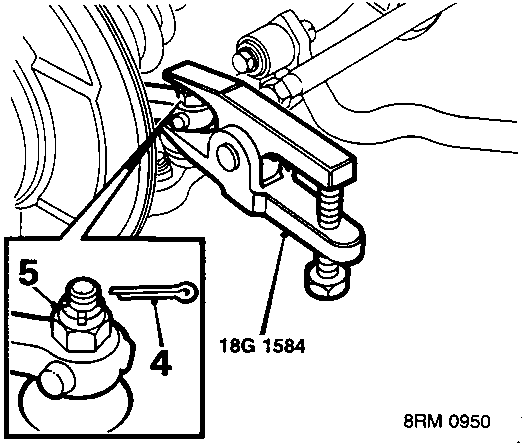

Diagram showing tool 18G 1584 being used on a steering arm assembly, with callout numbers 4 and 5. Code 8RM 0950.
  1. Remove split pin from steering arm nut.
  2. Remove steering arm nut.
  3. Break taper joint using tool 18G 1584.

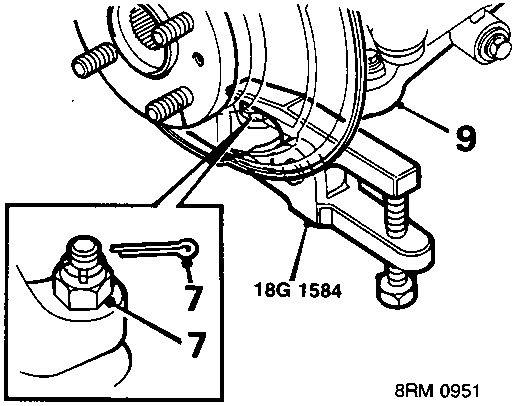

Diagram showing tool 18G 1584 being used on a lower ball joint assembly, with callout numbers 7 and 9. Code 8RM 0951.
  1. Remove split pin from lower ball joint nut and remove nut.
  2. Break taper joint using tool 18G 1584.
  3. Release lower arm from hub.

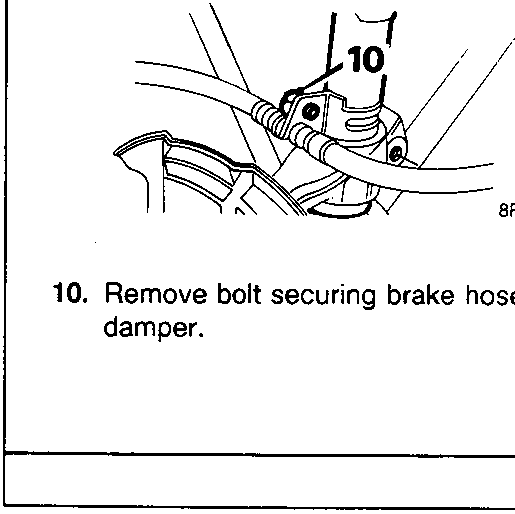

Diagram showing a brake hose bracket secured by bolt 10 to a damper. Code 8RM 1005.
  1. Remove bolt securing brake hose bracket to damper.

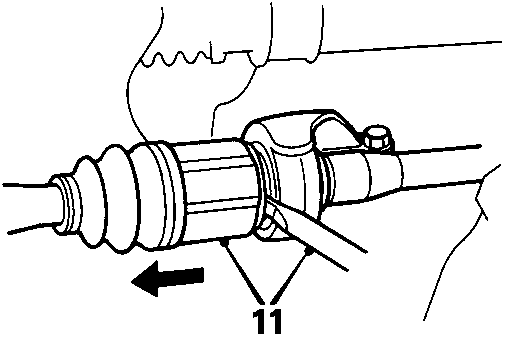

Diagram showing the drive shaft connection area with callout number 11.
  1. Using a screwdriver with dimensions as shown, release drive shaft from intermediate shaft.

CAUTION: Pull drive shaft horizontally to avoid damage to intermediate shaft oil seal.

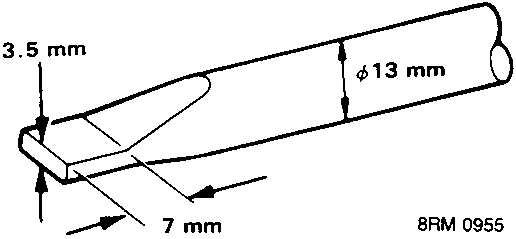

Diagram of a screwdriver tip with dimensions 3.5 mm, 7 mm, and diameter φ 13 mm. Code 8RM 0955.

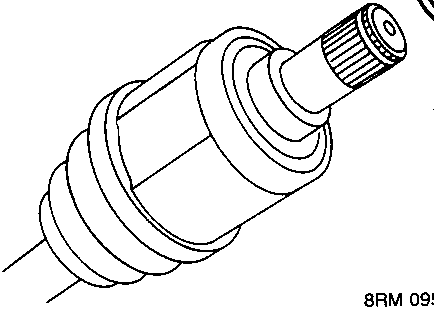

Diagram showing a drive shaft end with a circlip removed, callout number 12. Code 8RM 0953.
  1. Remove and discard circlip from drive shaft.

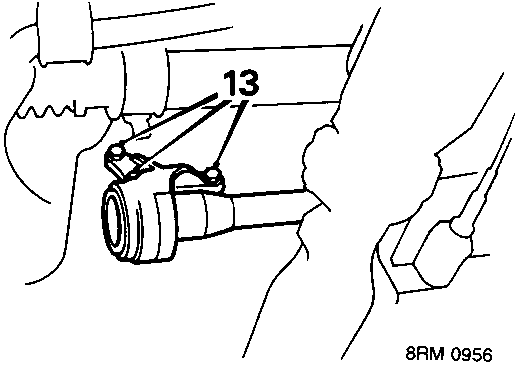

Diagram showing three bolts (callout 13) securing the intermediate shaft bearing housing to the cylinder block. Code 8RM 0956.
  1. Remove 3 bolts, intermediate shaft bearing housing to cylinder block.
