Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual21 · Brakes
21 · Brakes

Run - out exceeds limit (Brakes) (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Adjustments
BrakesRun - out exceeds limit · page 2 of 3

Service Repair No. 70.10.15

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

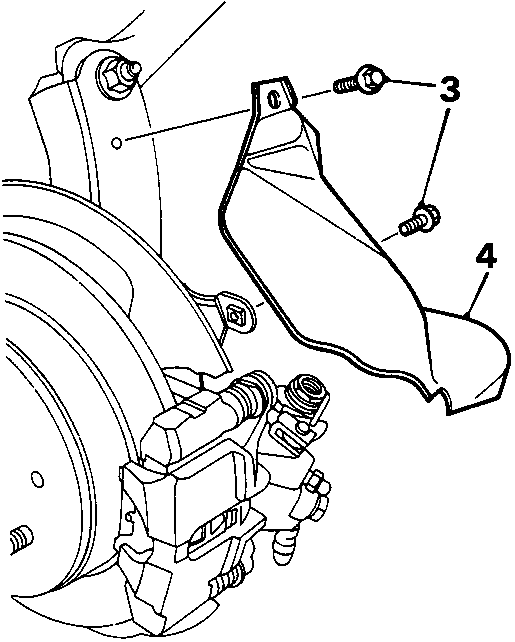

Diagram showing caliper shield (4) and bolts (3) on the rear brake assembly.
  1. Remove 2 bolts securing caliper shield.
  2. Remove caliper shield.

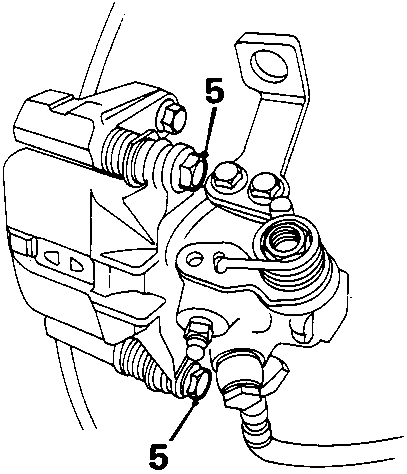

Diagram showing bolts (5) securing the brake caliper housing to the carrier.
  1. Remove 2 bolts securing brake caliper housing to carrier.

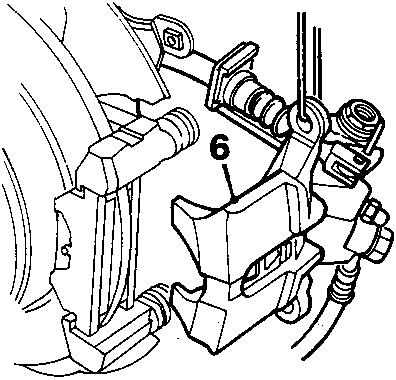

Diagram showing the release of the brake caliper housing (6) from the carrier.
  1. Release brake caliper housing from carrier and tie housing aside.

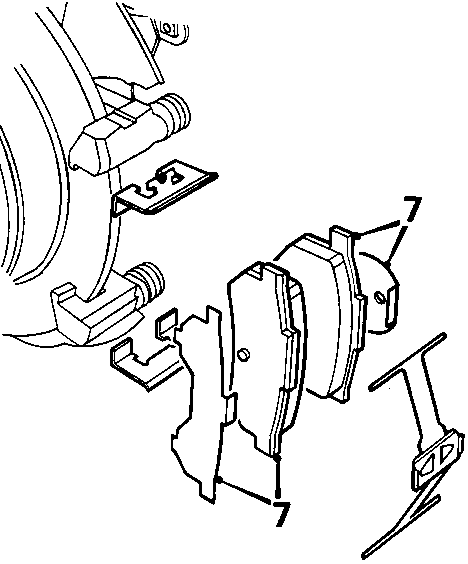

Diagram showing the removal of brake pads (7) and shims from the carrier.
  1. Remove brake pads and collect shims.
