Drive shaftsDrive shaft components – 1.6

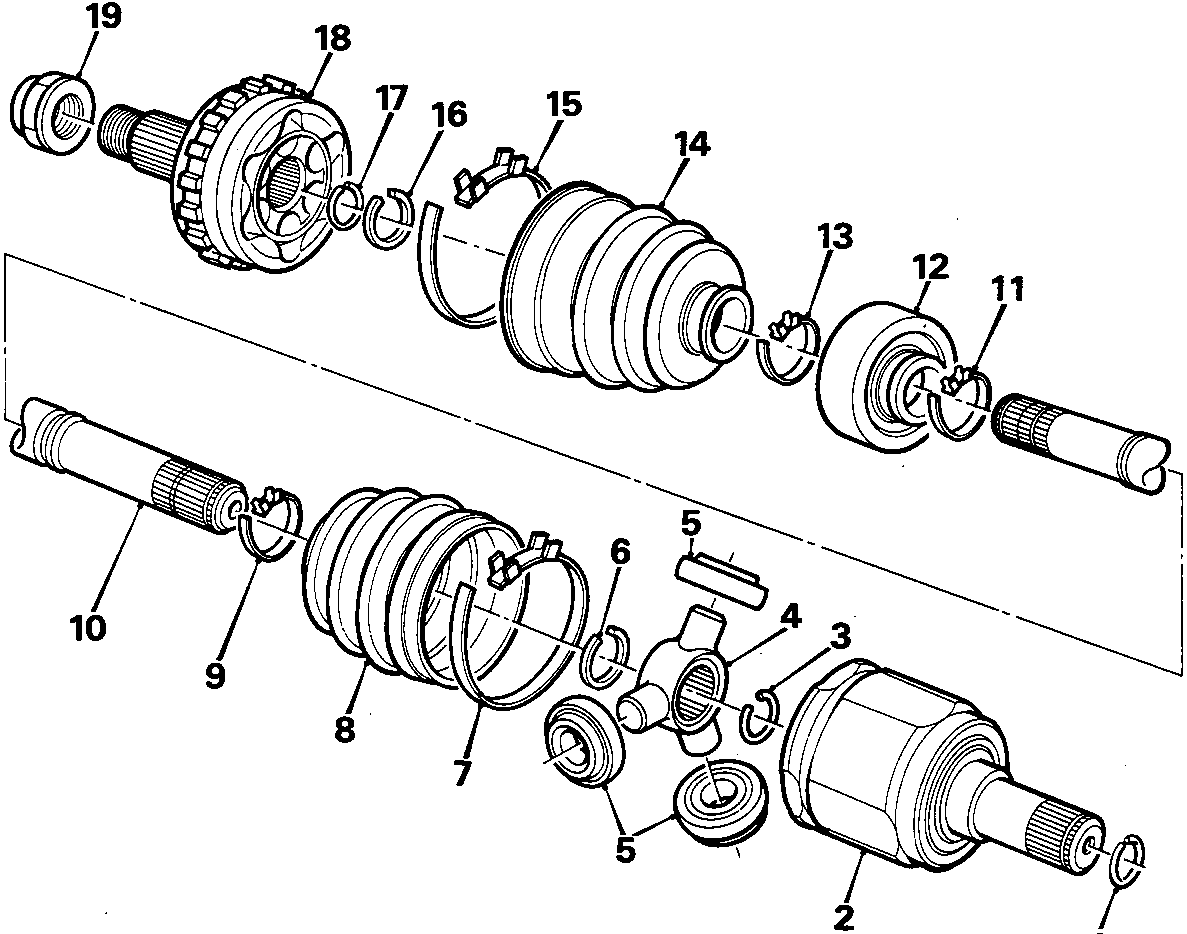

Exploded view diagram of a drive shaft showing numbered components from 1 to 19, including joints, gaiters, clips, bearings, and the shaft itself.

8RM 0787

DRIVE SHAFT COMPONENTS – 1.6

  1. Circlip
  2. Inner joint
  3. Circlip
  4. Spider
  5. Roller bearings
  6. Stopper ring
  7. Large clip – inner joint gaiter
  8. Gaiter
  9. Small clip – inner joint gaiter
  10. Shaft
  1. Damper clip
  2. Dynamic damper
  3. Small clip – outer joint gaiter
  4. Gaiter
  5. Large clip – outer joint gaiter
  6. Stopper ring
  7. Circlip
  8. Outer joint
  9. Drive shaft nut
