FUEL TANK BREATHER TWO - WAY VALVE

Service Repair No. 19.55.25

Remove

  1. Remove fuel tank assembly.

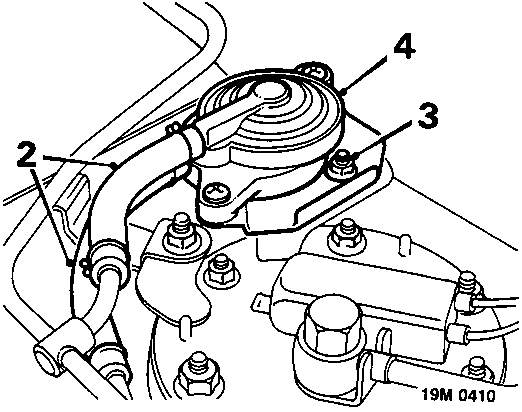

Diagram showing the fuel tank breather two-way valve with callout numbers 2, 3, and 4
  1. Release clips and disconnect hoses from valve.
  2. Remove nut securing valve to bracket.
  3. Remove valve.

Refit

  1. Remove plugs from new valve and fit to old.
  2. Position valve, fit and tighten nut to 9 Nm.
  3. Connect hoses and secure clips.
  4. Refit fuel tank assembly.

INERTIA SWITCH

Service Repair No. 19.22.09

Remove

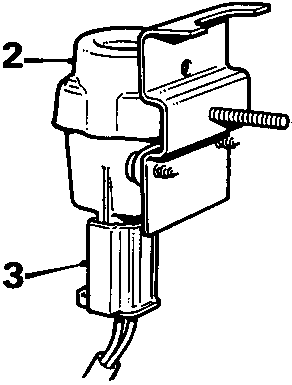

Diagram showing the inertia switch mounting bracket and fascia support with callout numbers 1, 2, and 3
  1. Remove nut securing inertia switch mounting bracket to fascia support.
  2. Release inertia switch from fascia support.
  3. Disconnect multiplug, remove inertia switch and mounting bracket.

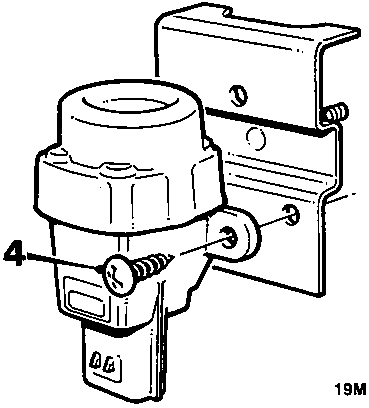

Diagram showing the inertia switch detached from its mounting bracket with callout number 4
  1. Remove 2 screws securing inertia switch to mounting bracket; remove switch.

Refit

  1. Position inertia switch to mounting bracket; fit and tighten screws.
  2. Position mounting bracket to fascia support, fit and tighten nut.
  3. Connect multiplug.
  4. Depress inertia switch button.

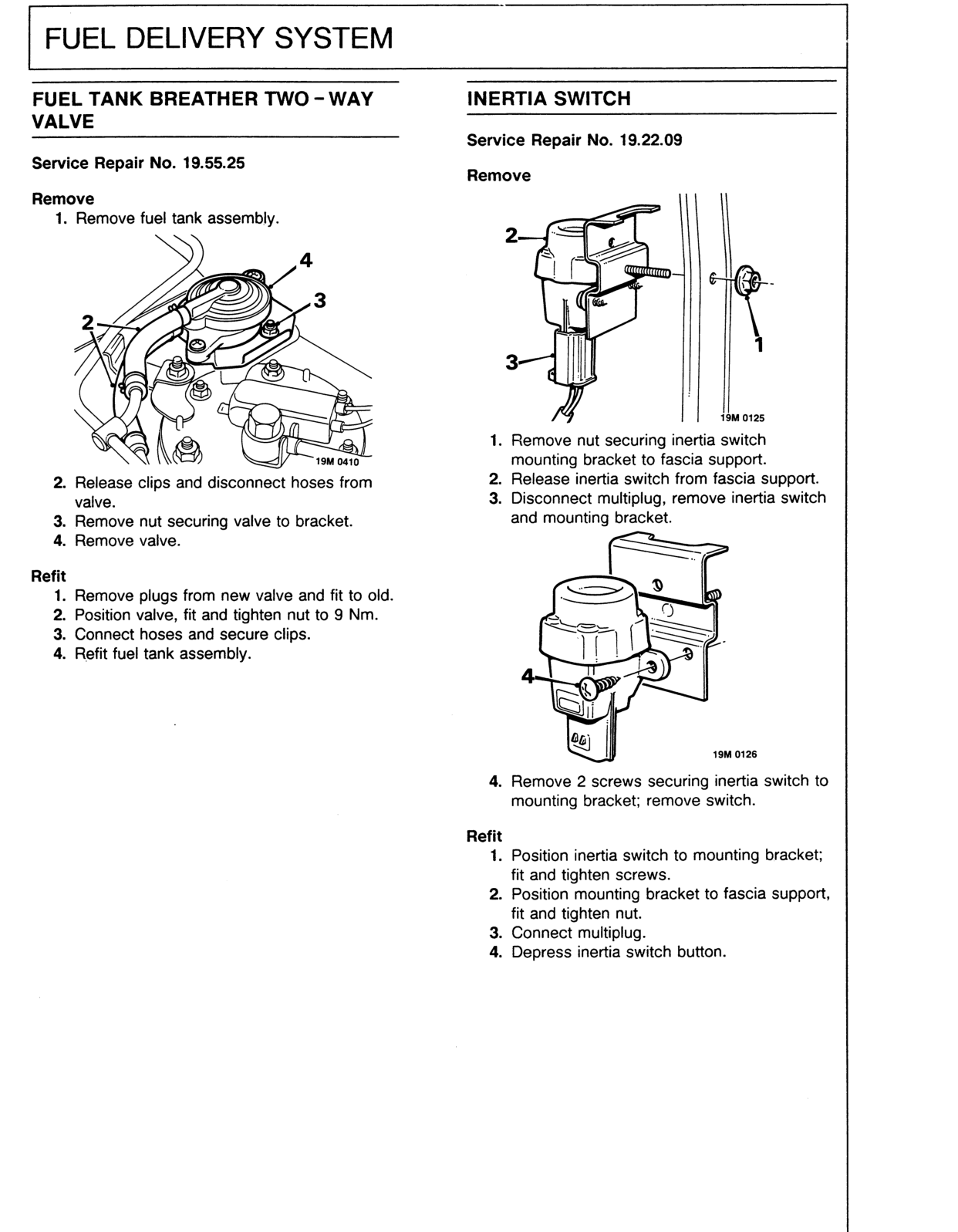

Original page
