Fuel tank assembly (page 3 of 3)

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove fuel tank assembly.

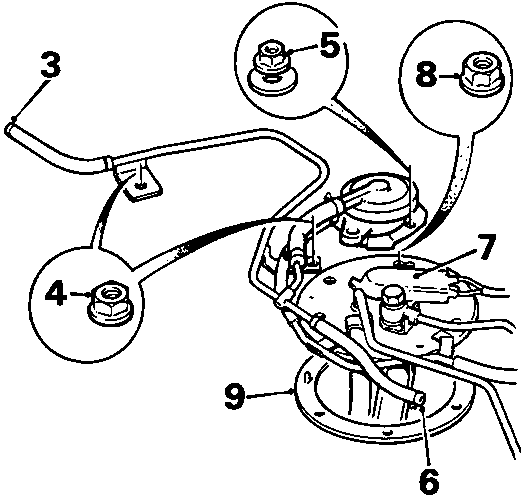

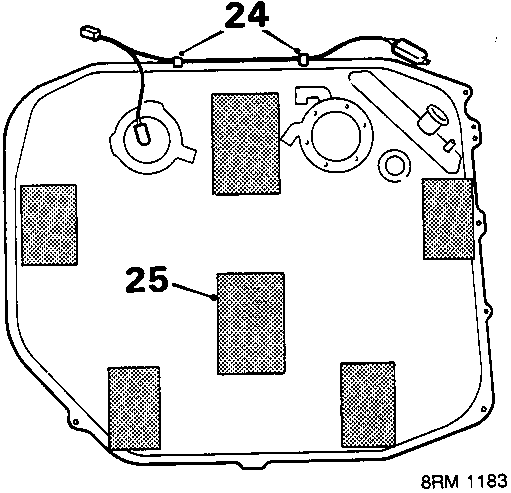

3. Release clip securing tank vent hose and disconnect hose.
4. Remove 2 nuts securing vent pipe to tank brackets.
5. Remove nut securing vent valve to bracket and release valve from bracket.
6. Release clip and disconnect hose from cut – off valve.
7. Release fuel pump multiplug cover and disconnect multiplug from fuel pump.
8. Remove 6 nuts securing fuel pump housing, release housing and remove housing and vent pipe assembly from the tank.
9. Remove housing seal.

Refit

1. Wipe fuel pump housing and mating face, position and secure sealing ring to housing.
2. Position housing and vent pipe assembly, align and secure to tank. Fit and tighten nuts to 9 Nm.
3. Connect fuel pump multiplug and secure rubber cover.
4. Connect fuel cut off hose, secure clipand position vent pipe to tank brackets. Fit and tighten nuts to 9 Nm.
5. Position vent valve to bracket and secure with nut to 9 Nm. Connect vent hose and secure with clip.
6. Refit fuel tank assembly.
7. Remove stand(s) and lower vehicle.
