Fuel tank assembly (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Fuel delivery systemFuel tank assembly · page 2 of 3
  1. Place protective block on trolley jack and support fuel tank.

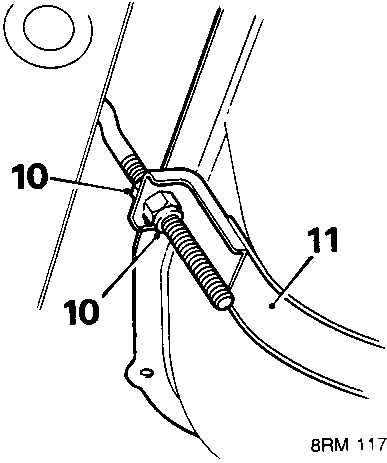

Diagram showing fuel tank strap assembly with callout numbers 10 and 11
  1. Slacken tank strap lock nuts and remove tank strap nuts.
  2. Release tank straps from vehicle body.
  3. Release and lower fuel tank, remove from below vehicle.

Do not carry out further dismantling if component is removed for access only

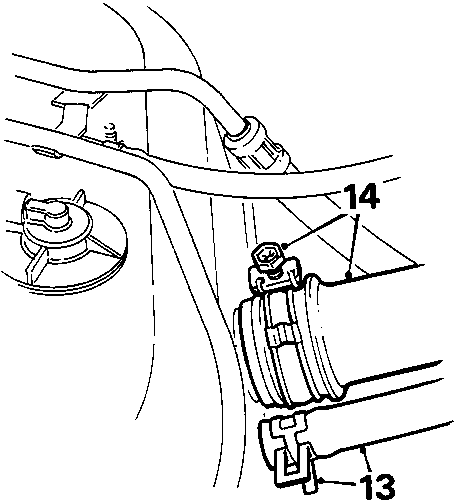

Diagram showing breather and filler hose connections with callout numbers 13 and 14
  1. Release clip from breather hose and remove hose.
  2. Remove clip securing filler hose and remove hose.

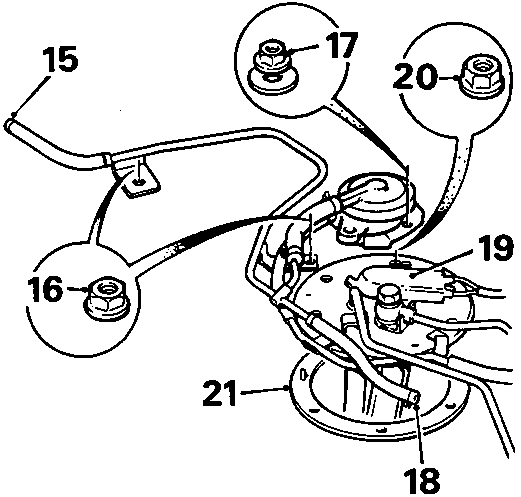

Diagram showing fuel tank vent and pump assembly with callout numbers 15 through 21
  1. Release clip securing tank vent hose and disconnect hose.
  2. Remove 2 nuts securing vent pipe to tank.
  3. Remove nut securing vent valve to bracket and release valve.
  4. Release clip and disconnect hose from cut off valve.
  5. Remove multiplug cover from fuel pump and disconnect multiplug.
  6. Remove 6 nuts securing fuel pump and remove pump assembly from tank.
  7. Remove seal from fuel pump.

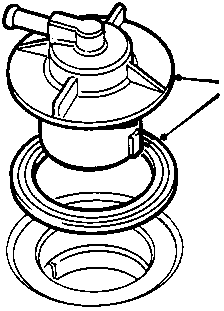

Diagram showing cut-off valve and seal assembly with callout number 22
  1. Remove cut – off valve and seal from tank.
  2. Remove fuel gauge sender unit from tank, see INSTRUMENTS – Repairs.
