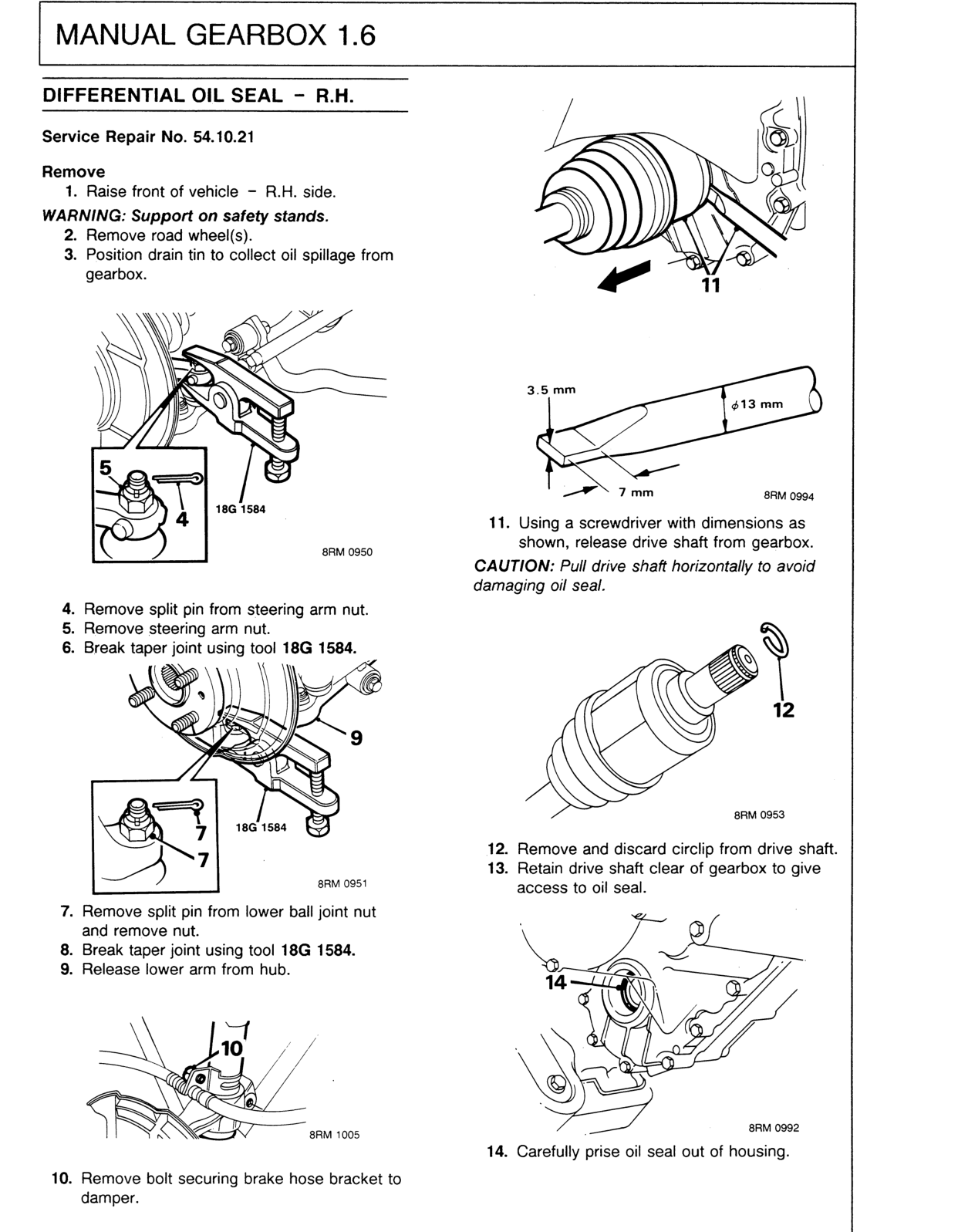

Manual gearbox 1.6Original page

Service Repair No. 54.10.21

Remove

  1. Raise front of vehicle – R.H. side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Position drain tin to collect oil spillage from gearbox.

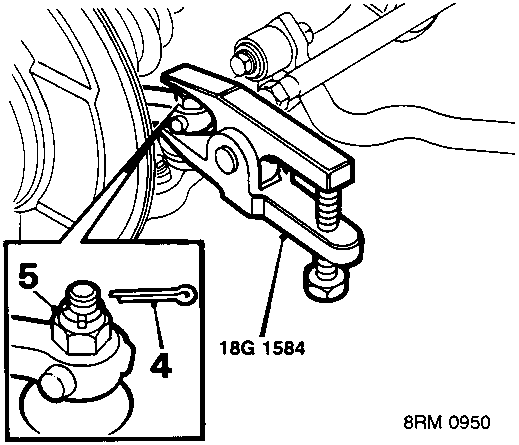

Diagram showing steering arm and tool 18G 1584 with callout numbers 4 and 5
  1. Remove split pin from steering arm nut.
  2. Remove steering arm nut.
  3. Break taper joint using tool 18G 1584.

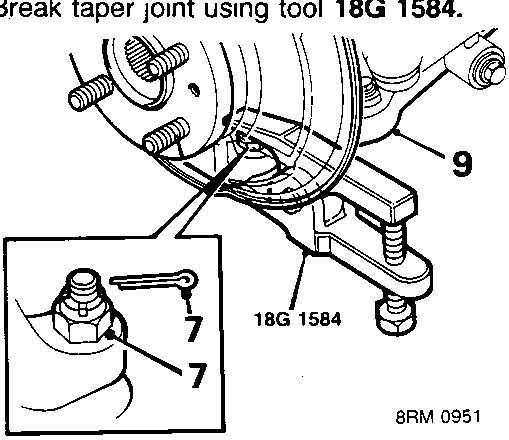

Diagram showing lower ball joint, tool 18G 1584, and callout numbers 7 and 9
  1. Remove split pin from lower ball joint nut and remove nut.
  2. Break taper joint using tool 18G 1584.
  3. Release lower arm from hub.

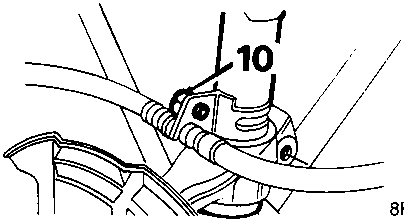

Diagram showing brake hose bracket bolt callout number 10
  1. Remove bolt securing brake hose bracket to damper.

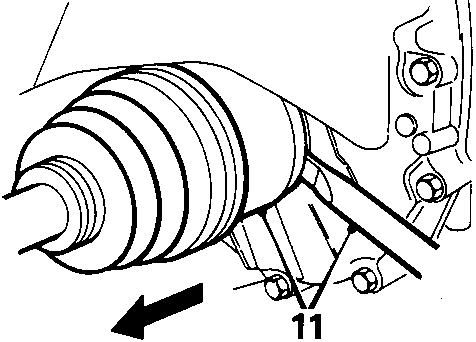

Diagram showing drive shaft connection with callout number 11 and arrow indicating direction

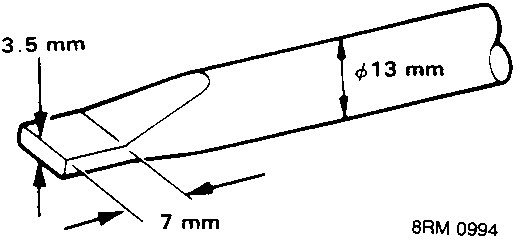

Diagram of screwdriver tip with dimensions 3.5 mm, 7 mm, and φ13 mm
  1. Using a screwdriver with dimensions as shown, release drive shaft from gearbox.

CAUTION: Pull drive shaft horizontally to avoid damaging oil seal.

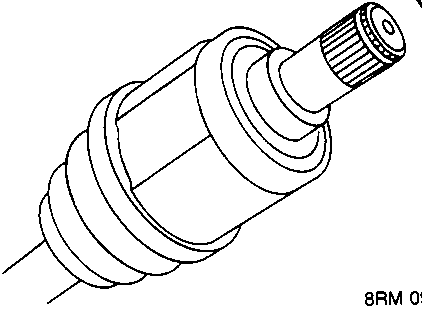

Diagram of drive shaft end with circlip callout number 12
  1. Remove and discard circlip from drive shaft.
  2. Retain drive shaft clear of gearbox to give access to oil seal.

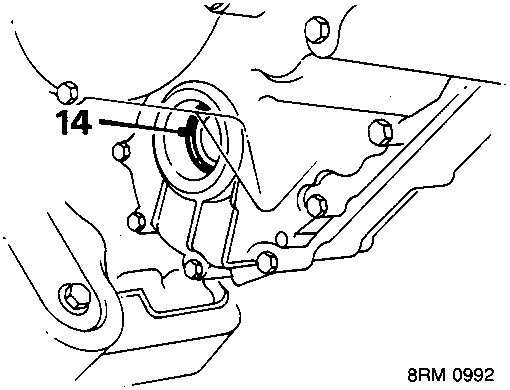

Diagram showing oil seal being prised out of housing with callout number 14
  1. Carefully prise oil seal out of housing.
