Refit

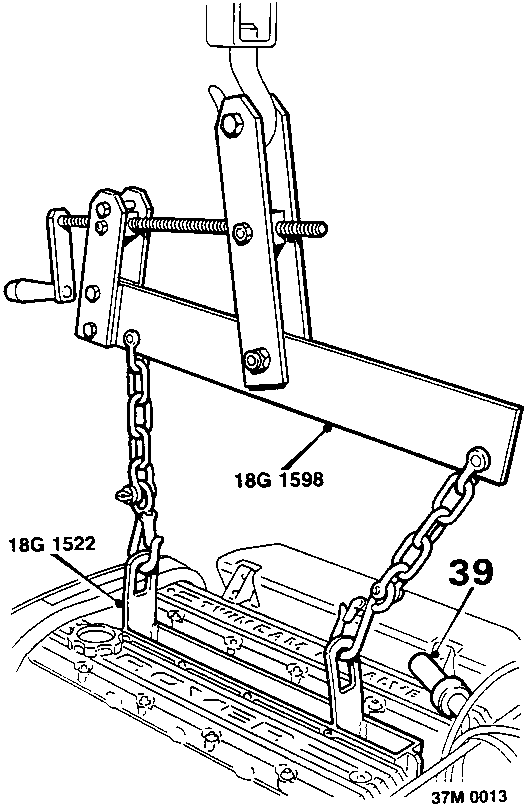

39. Disconnect h.t. leads from spark plugs; move leads aside.
40. Using 2 bolts, part of tool 18G 1522, attach tool 18G 1522 to spark plug cover bolt holes in cylinder head; tighten bolts.
41. Attach engine lifting tool 18G 1598 to tool 18G 1522 and connect lifting chain of hoist.
42. Raise hoist to just support weight of engine.

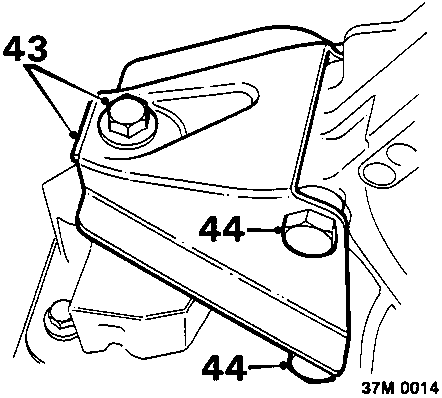

43. Remove bolt securing engine front mounting bracket to mounting rubber.
44. Remove 2 bolts securing engine front mounting bracket to gearbox; remove bracket.

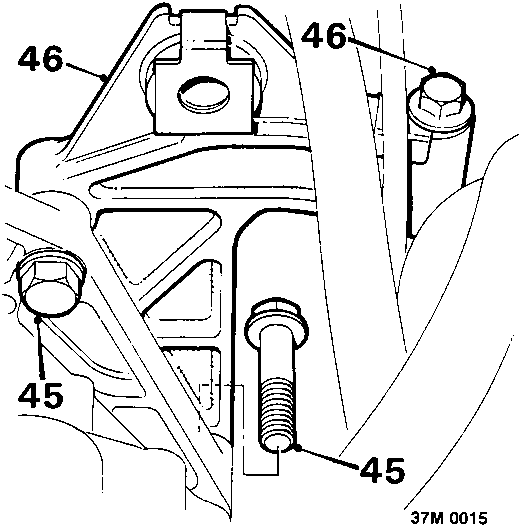

45. Remove 2 bolts securing engine rear mounting bracket to gearbox.
46. Remove bolt securing engine rear mounting bracket to mounting rubber; remove bracket.
47. Lower engine sufficiently to gain access to bolts securing gearcase to differential housing.

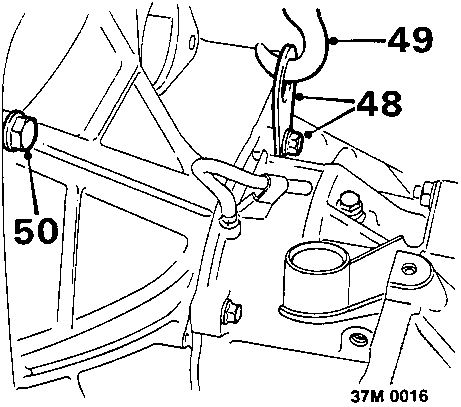

48. Remove bolt securing gearcase to differential housing, position suitable lifting eye; fit and tighten bolt.
49. Attach lifting chain of hoist to lifting eye and raise chain to support weight of gearbox.
50. Remove bolt securing gearbox to engine.
51. Release gearbox from locating dowels.
52. Using assistance, manoeuvre gearbox away from engine.
53. Lower gearbox, disconnect lifting chain and remove gearbox from beneath vehicle.

Refit

1. Clean mating faces of gearbox and gearbox adaptor plate; ensure locating dowels are fitted.
2. Using assistance, position gearbox beneath vehicle.
3. Connect lifting chain of hoist to gearbox lifting eye.
4. Using assistance, raise gearbox until it is aligned with engine; locate gearbox on dowels.
5. Fit but do not tighten gearbox securing bolt.
