Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual16 · Manual gearbox 1.6
16 · Transmission

Gearbox assembly (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Manual gearbox 1.6Gearbox assembly · page 3 of 3

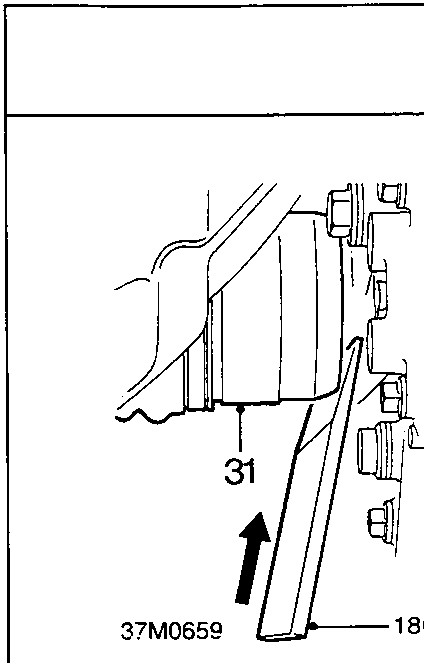

Diagram showing drive shaft release point with callout 31 and tool 18G 1578
  1. Using tool 18G 1578, release drive shafts from gearbox.

CAUTION: Keep drive shafts horizontal to avoid damaging differential oil seal.

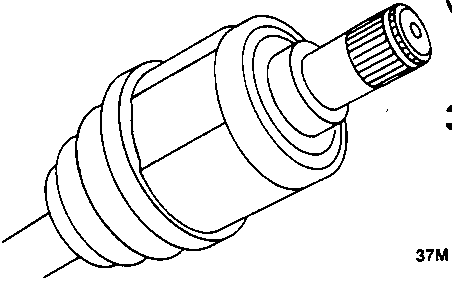

Diagram of drive shaft end with circled callout 32
  1. Discard circlip from end of each drive shaft.

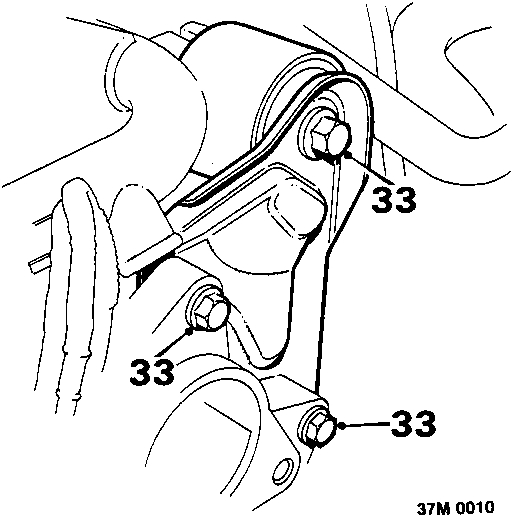

Diagram of engine rear mounting plate with three bolts labeled 33
  1. Remove 3 bolts securing engine rear mounting plate to gearbox and mounting bracket; remove plate.

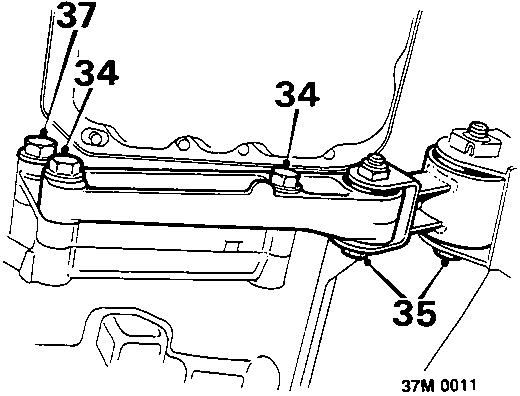

Diagram of lower tie rod bracket area with callouts 34, 35, and 37
  1. Remove 2 bolts securing lower tie rod bracket to gearbox.
  2. Slacken but do not remove bolt securing lower tie rod to bracket and bolt securing lower tie rod to sub – frame.
  3. Move lower tie rod and bracket aside.
  4. Remove bottom bolt securing gearbox to engine.

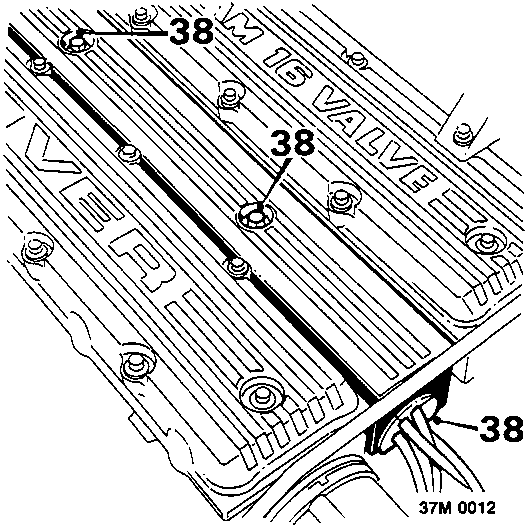

Diagram of spark plug cover with bolts labeled 38
  1. Remove 2 bolts securing spark plug cover, release grommet and remove cover.
