SteeringSteering rack components – manual steering

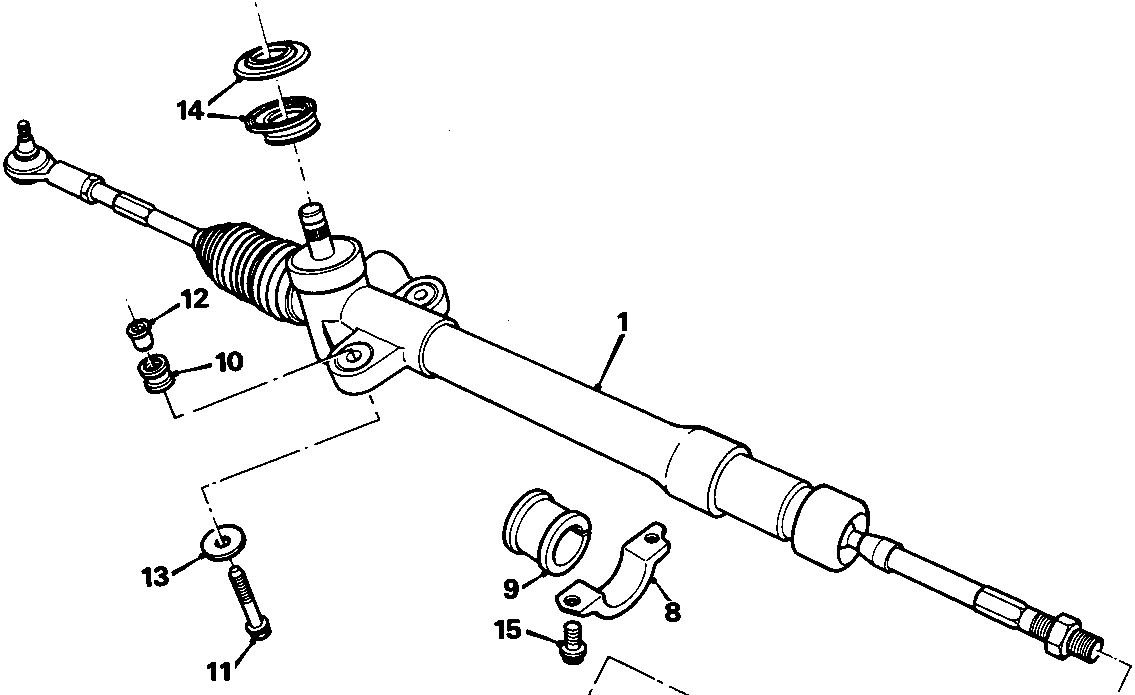

Exploded view diagram of the manual steering rack assembly showing components numbered 1 through 15.

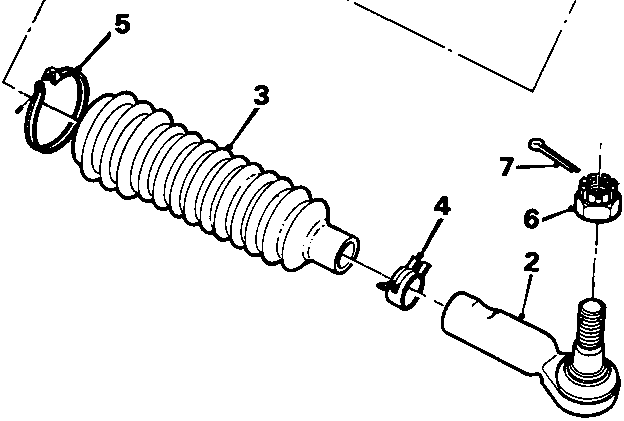

Close-up exploded view of the steering rack gaiter, track rod end, and associated clips and fasteners, numbered 2 through 7.

8RM 0216

STEERING RACK COMPONENTS – MANUAL STEERING

  1. Steering rack
  2. Track – rod end
  3. Gaiter – steering rack
  4. Clip outer
  5. Clip inner
  6. Nut – track – rod end
  7. Split pin – track – rod end
  8. Clamp – steering rack
  9. Support bush – steering rack
  10. Bush – steering rack to subframe
  11. Securing bolt – steering rack to subframe
  12. Collar – steering rack to subframe
  13. Washer – steering rack to subframe
  14. Seals – rack to body
  15. Securing bolt – clamp to subframe
