19 · Steering & suspension

Steering rack components – power steering

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › Steering rack components – power steering
SteeringSteering rack components – power steering · page 1 of 2

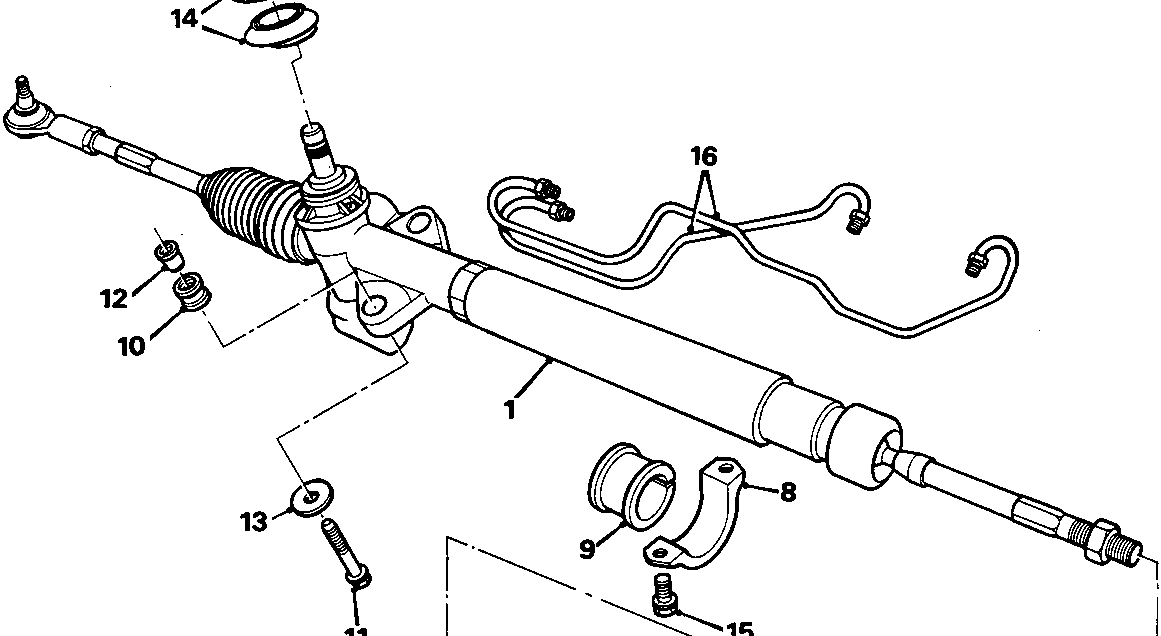

Exploded view diagram of the steering rack assembly showing components numbered 1 through 16, including the rack, track-rod end, gaiter, clamps, bolts, seals, and hydraulic pipes.

8RM 0101

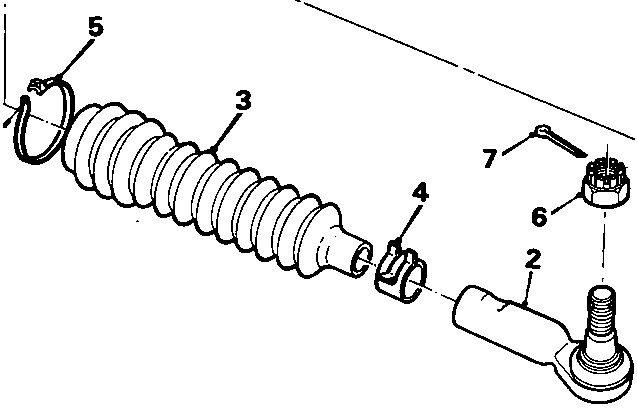

STEERING RACK COMPONENTS – POWER STEERING

  1. Steering rack
  2. Track – rod end
  3. Gaiter – steering rack
  4. Clip outer
  5. Clip inner
  6. Nut – track – rod end
  7. Split pin – track – rod end
  8. Clamp – steering rack
  9. Support bush – steering rack
  10. Bush – steering rack to subframe
  11. Securing bolt – steering rack to subframe
  12. Collar – steering rack to subframe
  13. Washer – steering rack to subframe
  14. Seals – rack to body
  15. Securing bolt – clamp to subframe
  16. Hydraulic pipes
Diagram shows steering column and linkage components with numbered parts
