Suspension: Description and operation (page 3 of 3)
- Make
- Rover
- Model
- Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
- Section
- Description and operation
SuspensionDescription and operation · page 3 of 3

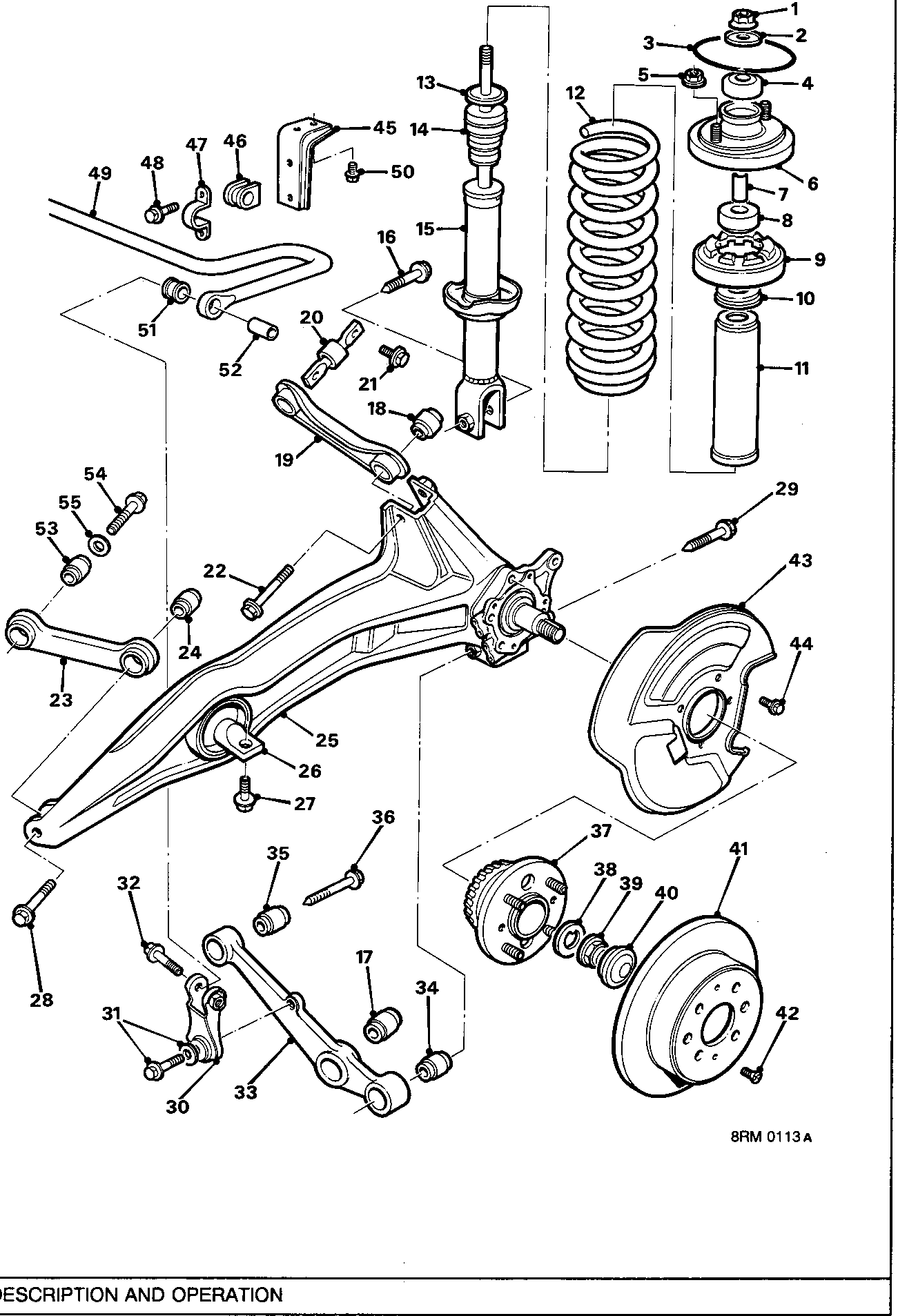

Suspension: Description and operation (page 3 of 3) – diagram from the Suspension chapter of the Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual factory manual.
