Cruise ControlDiagnostic Aids · page 31 of 99
*

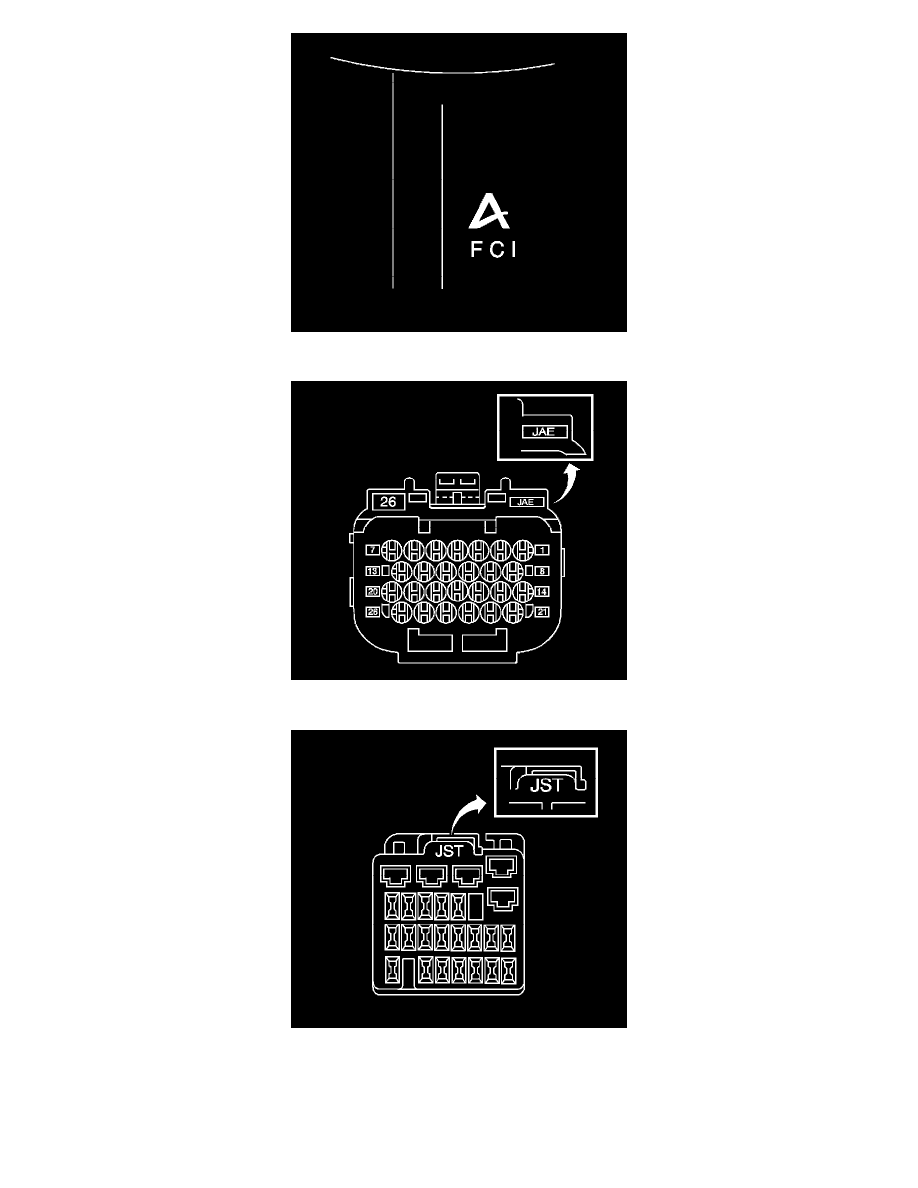

FCI connectors may have the FCI logo on their connectors. The logo is the letters FCI with an "A" above it.
*
JAE connector have JAE in small letters on their connectors.
*
JST connectors have JST in small letters on their connectors, similar to that above. The location of the logo will vary with the connector size and
style.
