Leon Mk1

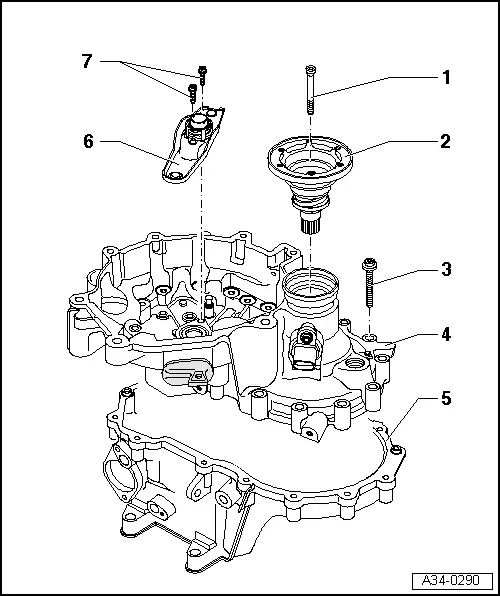

Gearbox housing - assembly overview |
1 - | 25 Nm conical bolt |
2 - | Flanged shaft with pressure spring |
q | Removing and installing |
q | assemble: starting from side |
3 - | Bolt, 5 Nm and tighten 90 º more |
q | Always replace. |
4 - | clutch housing |
q | This may be made of aluminium or magnesium |
q | Allocation: → Parts catalogue |
q | Repairing → Chapter |
5 - | Gearbox |
q | This may be made of aluminium or magnesium |
q | Allocation: → Parts catalogue |
q | Repairing → Chapter |
6 - | Clutch release lever: |
q | With guide sleeve and clutch release collar |
q | Removing and installing |
7 - | Bolt 5 Nm + 90° |
q | Always replace. |
