Leon Mk1

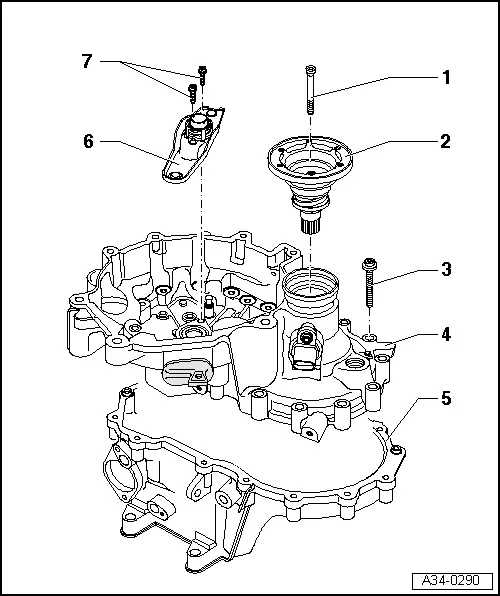

Gearbox housing - assembly overview |
1 - | Countersunk bolt, 25 Nm |
2 - | Flange shaft with compression spring |
q | removing and fitting → Chapter |
3 - | Screws, 5 Nm and turn another 90º |
q | Always replace. |
4 - | clutch housing |
q | This may be made of aluminium or magnesium |
q | Allocation: → Parts catalogue |
q | repairs → Chapter |
5 - | Gearbox |
q | This may be made of aluminium or magnesium |
q | Allocation: → Parts catalogue |
q | repairs → Chapter |
6 - | Clutch release lever: |
q | With guide sleeve and release bearing |
q | Removing and installing |
7 - | Bolt 5 Nm + 90° |
q | Always replace. |
